336-022-541-601
336-022-541-601
Favorite Products
Share:

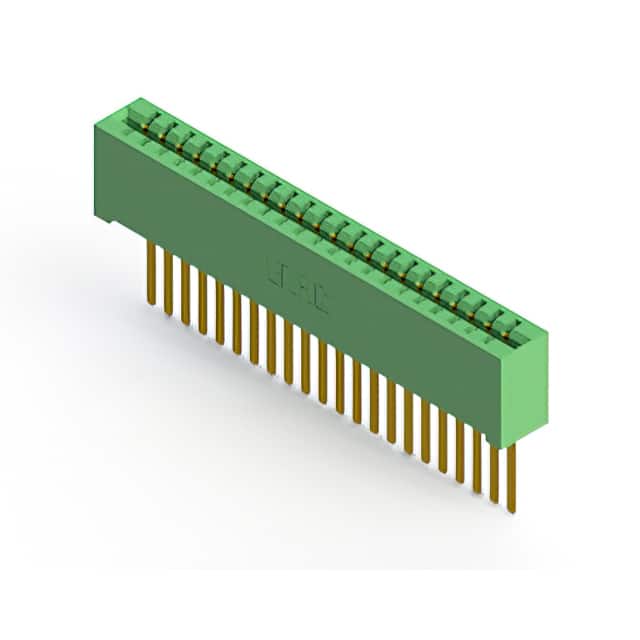

336-022-541-601

336-022-541-601
EDAC Inc.
336 SERIES (.156" (3.96MM) CONTA
Edgeboard Connectors
Available
RoHS Compliant
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Termination
Wire Wrap
Contact Finish Thickness
10.0µin (0.25µm)
Package
Bulk
Features
-
Contact Material
Copper Alloy
Flange Feature
-
Mfr
EDAC Inc.
Color
Green
Card Type
Non Specified - Single Edge
Number of Positions/Bay/Row
22
Contact Type
Cantilever
Number of Positions
22
Number of Rows
1
Mounting Type
Through Hole
Gender
Female
Operating Temperature
-65°C ~ 125°C
Contact Finish
Gold
Material - Insulation
Diallyl Phthalate (DAP)
Termination Rows
1
Base Product Number
336-022
Series
336
Product Status
Active
Read Out
Single
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Pitch
0.156" (3.96mm)
