336-025-541-604
336-025-541-604
Favorite Products
Share:

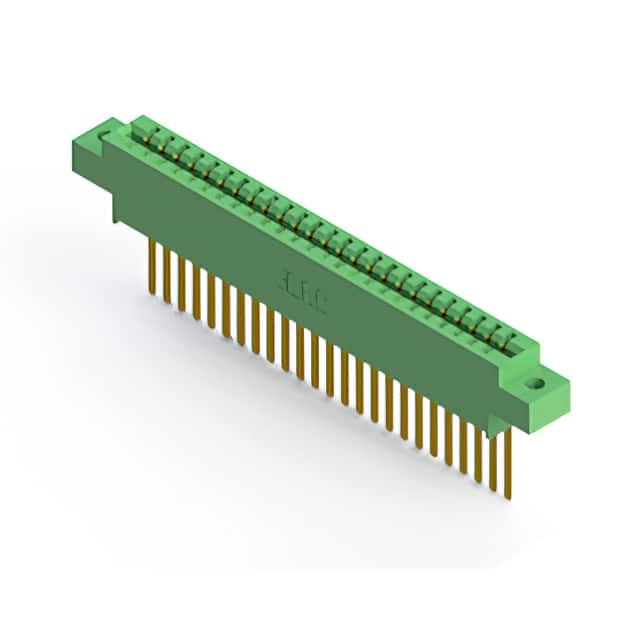

336-025-541-604

336-025-541-604
EDAC Inc.
336 SERIES (.156" (3.96MM) CONTA
Edgeboard Connectors
Available
RoHS Compliant
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Termination
Wire Wrap
Contact Finish Thickness
10.0µin (0.25µm)
Read Out
Single
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Pitch
0.156" (3.96mm)
Termination Rows
1
Base Product Number
336-025
Number of Positions
25
Flange Feature
Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Package
Bulk
Card Type
Non Specified - Single Edge
Color
Green
Series
336
Features
-
Material - Insulation
Diallyl Phthalate (DAP)
Number of Positions/Bay/Row
25
Number of Rows
1
Contact Material
Copper Alloy
Contact Type
Cantilever
Mfr
EDAC Inc.
Product Status
Active
Operating Temperature
-65°C ~ 125°C
Gender
Female
Mounting Type
Through Hole
Contact Finish
Gold
