336-030-541-802
336-030-541-802
Favorite Products
Share:

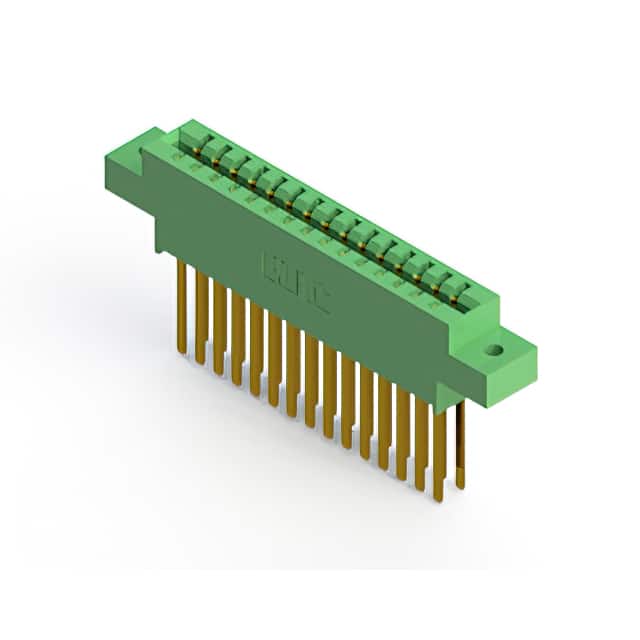

336-030-541-802

336-030-541-802
EDAC Inc.
336 SERIES (.156" (3.96MM) CONTA
Edgeboard Connectors
Available
RoHS Compliant
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Type
Cantilever
Base Product Number
336-030
Operating Temperature
-65°C ~ 125°C
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Package
Bulk
Number of Rows
2
Read Out
Dual
Gender
Female
Number of Positions/Bay/Row
15
Contact Material
Copper Alloy
Material - Insulation
Diallyl Phthalate (DAP)
Termination Rows
2
Product Status
Active
Number of Positions
30
Features
-
Termination
Wire Wrap
Card Type
Non Specified - Dual Edge
Mounting Type
Through Hole
Color
Green
Series
336
Pitch
0.156" (3.96mm)
Flange Feature
Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Mfr
EDAC Inc.
Contact Finish
Gold
Contact Finish Thickness
10.0µin (0.25µm)
