336-030-541-804
336-030-541-804
Favorite Products
Share:

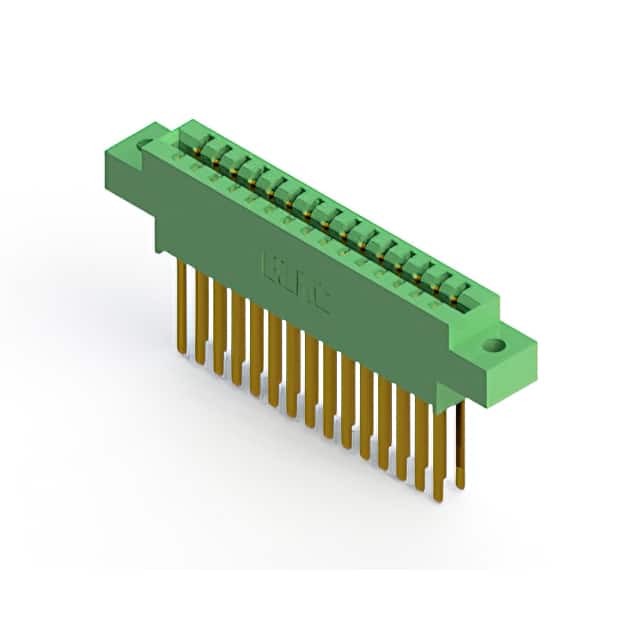

336-030-541-804

336-030-541-804
EDAC Inc.
336 SERIES (.156" (3.96MM) CONTA
Edgeboard Connectors
Available
RoHS Compliant
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Number of Positions/Bay/Row
15
Number of Rows
2
Base Product Number
336-030
Features
-
Mounting Type
Through Hole
Card Type
Non Specified - Dual Edge
Flange Feature
Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Material - Insulation
Diallyl Phthalate (DAP)
Contact Material
Copper Alloy
Contact Type
Cantilever
Termination Rows
2
Contact Finish
Gold
Color
Green
Operating Temperature
-65°C ~ 125°C
Mfr
EDAC Inc.
Series
336
Package
Bulk
Number of Positions
30
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination
Wire Wrap
Gender
Female
Pitch
0.156" (3.96mm)
Read Out
Dual
Contact Finish Thickness
10.0µin (0.25µm)
Product Status
Active
