336-038-541-802
336-038-541-802
Favorite Products
Share:

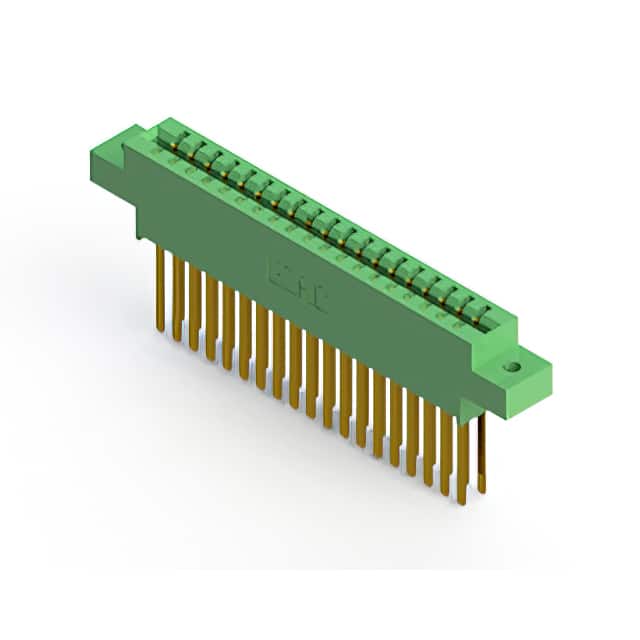

336-038-541-802

336-038-541-802
EDAC Inc.
336 SERIES (.156" (3.96MM) CONTA
Edgeboard Connectors
Available
RoHS Compliant
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Package
Bulk
Operating Temperature
-65°C ~ 125°C
Pitch
0.156" (3.96mm)
Number of Positions/Bay/Row
19
Contact Type
Cantilever
Mfr
EDAC Inc.
Number of Positions
38
Features
-
Contact Material
Copper Alloy
Material - Insulation
Diallyl Phthalate (DAP)
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows
2
Read Out
Dual
Termination
Wire Wrap
Base Product Number
336-038
Series
336
Contact Finish
Gold
Color
Green
Product Status
Active
Card Type
Non Specified - Dual Edge
Gender
Female
Contact Finish Thickness
10.0µin (0.25µm)
Mounting Type
Through Hole
Flange Feature
Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination Rows
2
