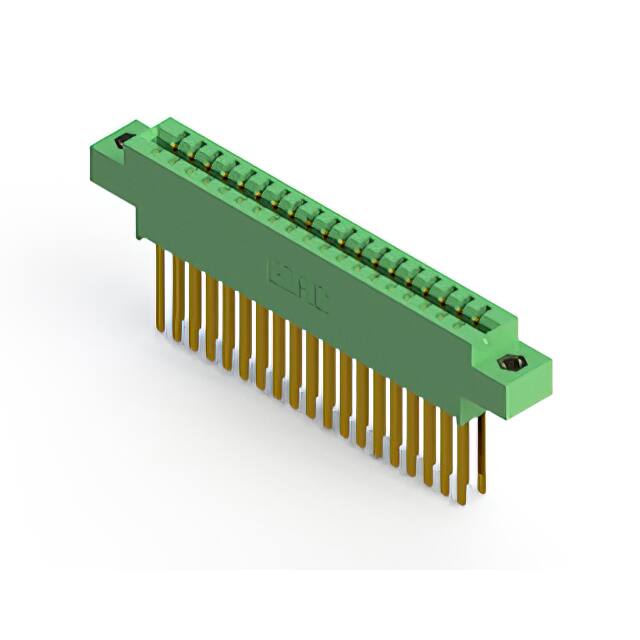

336-038-541-807
336-038-541-807
Favorite Products
Share:

336-038-541-807

336-038-541-807
EDAC Inc.
336 SERIES (.156" (3.96MM) CONTA
Edgeboard Connectors
Available
RoHS Compliant
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Number of Positions
38
Mounting Type
Through Hole
Series
336
Contact Finish Thickness
10.0µin (0.25µm)
Contact Type
Cantilever
Card Type
Non Specified - Dual Edge
Termination
Wire Wrap
Read Out
Dual
Contact Finish
Gold
Flange Feature
Top Mount Opening, Threaded Insert, M3
Termination Rows
2
Number of Positions/Bay/Row
19
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Operating Temperature
-65°C ~ 125°C
Number of Rows
2
Contact Material
Copper Alloy
Package
Bulk
Product Status
Active
Features
-
Base Product Number
336-038
Mfr
EDAC Inc.
Gender
Female
Pitch
0.156" (3.96mm)
Color
Green
Material - Insulation
Diallyl Phthalate (DAP)
