336-056-541-807
336-056-541-807
Favorite Products
Share:

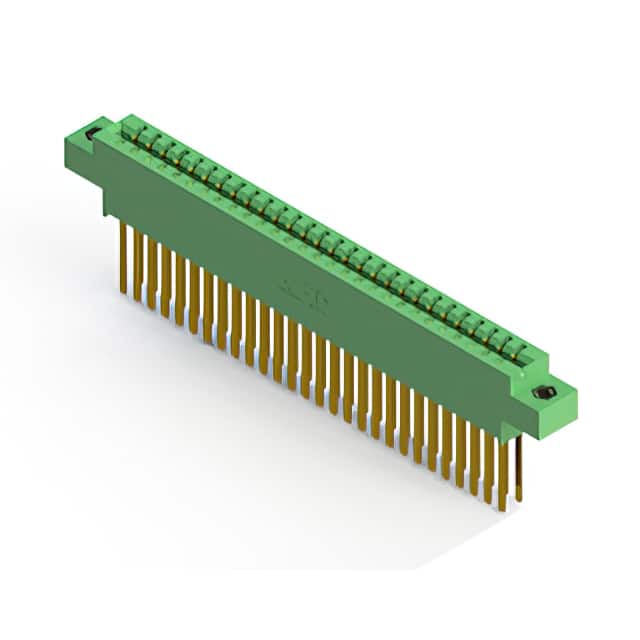

336-056-541-807

336-056-541-807
EDAC Inc.
336 SERIES (.156" (3.96MM) CONTA
Edgeboard Connectors
Available
RoHS Compliant
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Termination Rows
2
Material - Insulation
Diallyl Phthalate (DAP)
Base Product Number
336-056
Product Status
Active
Number of Positions
56
Operating Temperature
-65°C ~ 125°C
Series
336
Package
Bulk
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Features
-
Mfr
EDAC Inc.
Card Type
Non Specified - Dual Edge
Pitch
0.156" (3.96mm)
Contact Finish
Gold
Color
Green
Contact Type
Cantilever
Read Out
Dual
Termination
Wire Wrap
Gender
Female
Contact Finish Thickness
10.0µin (0.25µm)
Number of Rows
2
Mounting Type
Through Hole
Flange Feature
Top Mount Opening, Threaded Insert, M3
Number of Positions/Bay/Row
28
Contact Material
Copper Alloy
