336-070-541-803
336-070-541-803
Favorite Products
Share:

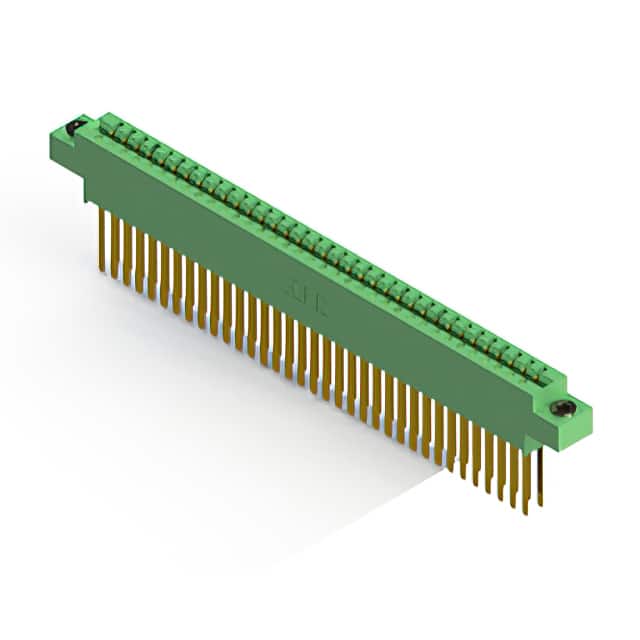

336-070-541-803

336-070-541-803
EDAC Inc.
336 SERIES (.156" (3.96MM) CONTA
Edgeboard Connectors
Available
RoHS Compliant
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Pitch
0.156" (3.96mm)
Operating Temperature
-65°C ~ 125°C
Base Product Number
336-070
Mounting Type
Through Hole
Package
Bulk
Product Status
Active
Gender
Female
Contact Material
Copper Alloy
Material - Insulation
Diallyl Phthalate (DAP)
Mfr
EDAC Inc.
Number of Positions/Bay/Row
35
Number of Rows
2
Termination
Wire Wrap
Contact Finish Thickness
10.0µin (0.25µm)
Color
Green
Card Type
Non Specified - Dual Edge
Number of Positions
70
Series
336
Read Out
Dual
Features
-
Flange Feature
Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Contact Finish
Gold
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Contact Type
Cantilever
Termination Rows
2
