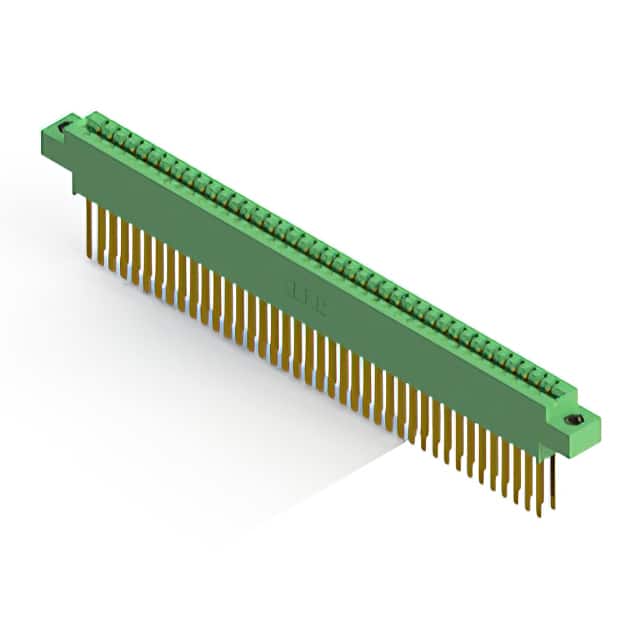

336-080-541-807
336-080-541-807
Favorite Products
Share:

336-080-541-807

336-080-541-807
EDAC Inc.
336 SERIES (.156" (3.96MM) CONTA
Edgeboard Connectors
Available
RoHS Compliant
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Finish Thickness
10.0µin (0.25µm)
Product Status
Active
Termination
Wire Wrap
Card Type
Non Specified - Dual Edge
Pitch
0.156" (3.96mm)
Base Product Number
336-080
Number of Positions
80
Read Out
Dual
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Mfr
EDAC Inc.
Number of Positions/Bay/Row
40
Mounting Type
Through Hole
Contact Material
Copper Alloy
Contact Type
Cantilever
Material - Insulation
Diallyl Phthalate (DAP)
Number of Rows
2
Features
-
Flange Feature
Top Mount Opening, Threaded Insert, M3
Operating Temperature
-65°C ~ 125°C
Contact Finish
Gold
Termination Rows
2
Series
336
Package
Bulk
Gender
Female
Color
Green
