336-086-541-804
336-086-541-804
Favorite Products
Share:

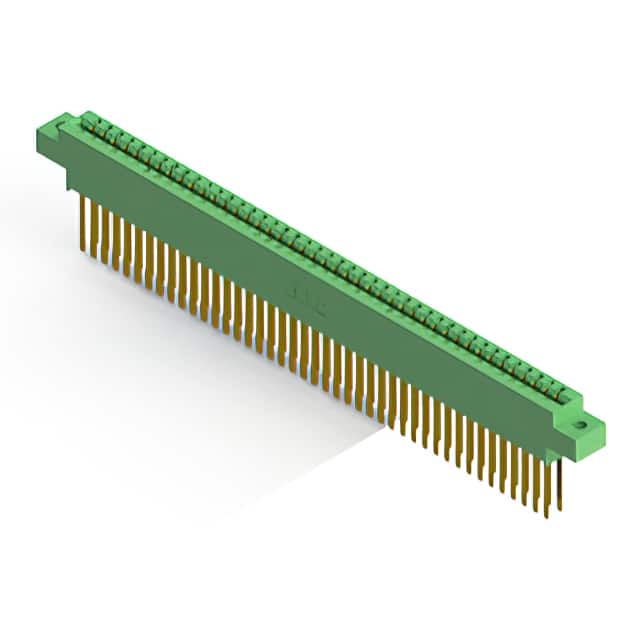

336-086-541-804

336-086-541-804
EDAC Inc.
336 SERIES (.156" (3.96MM) CONTA
Edgeboard Connectors
Available
RoHS Compliant
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Gender
Female
Number of Positions/Bay/Row
43
Mounting Type
Through Hole
Contact Type
Cantilever
Operating Temperature
-65°C ~ 125°C
Card Type
Non Specified - Dual Edge
Number of Positions
86
Pitch
0.156" (3.96mm)
Features
-
Contact Material
Copper Alloy
Color
Green
Material - Insulation
Diallyl Phthalate (DAP)
Package
Bulk
Product Status
Active
Number of Rows
2
Termination
Wire Wrap
Flange Feature
Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Series
336
Base Product Number
336-086
Mfr
EDAC Inc.
Contact Finish
Gold
Termination Rows
2
Read Out
Dual
Contact Finish Thickness
10.0µin (0.25µm)
