337-006-559-103
337-006-559-103
Favorite Products
Share:

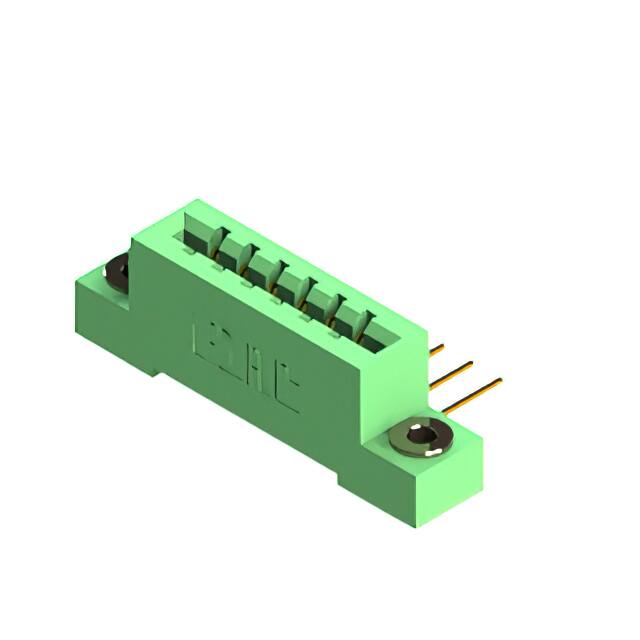

337-006-559-103

337-006-559-103
EDAC Inc.
337 SERIES (.156" (3.96MM) CONTA
Card Edge Connectors - Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Card Type
Non Specified - Single Edge
Color
Green
Mounting Type
Through Hole, Right Angle
Contact Finish Thickness
10.0µin (0.25µm)
Pitch
0.156" (3.96mm)
Contact Finish
Gold
Gender
Female
Contact Type
Cantilever
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Contact Material
Copper Alloy
Termination Rows
1
Mfr
EDAC Inc.
Series
337
Number of Positions
6
Number of Rows
1
Operating Temperature
-40°C ~ 105°C
Termination
Wire Wrap
Flange Feature
Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Product Status
Active
Read Out
Single
Features
-
Base Product Number
337-006
Package
Box
Number of Positions/Bay/Row
6
Material - Insulation
Polyester Thermoplastic
