337-024-541-204
337-024-541-204
Favorite Products
Share:

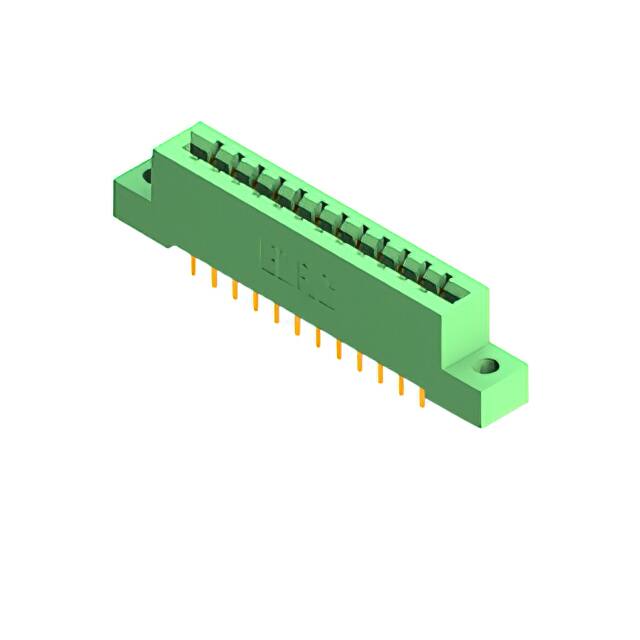

337-024-541-204

337-024-541-204
EDAC Inc.
CONN EDGE DUAL FMALE 24POS 0.156
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Series
337
Number of Positions
24
Card Type
Non Specified - Dual Edge
Pitch
0.156" (3.96mm)
Package
Bulk
Product Status
Active
Mounting Type
Through Hole
Contact Finish
Gold
Flange Feature
Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Operating Temperature
-40°C ~ 105°C
Mfr
EDAC Inc.
Gender
Female
Termination
Wire Wrap
Color
Green
Number of Positions/Bay/Row
12
Number of Rows
2
Features
-
Contact Material
Copper Alloy
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Read Out
Dual
Contact Type
Cantilever
Base Product Number
337-024
Contact Finish Thickness
10.0µin (0.25µm)
Material - Insulation
Polyester Thermoplastic
Termination Rows
2
