337-036-542-807
337-036-542-807
Favorite Products
Share:

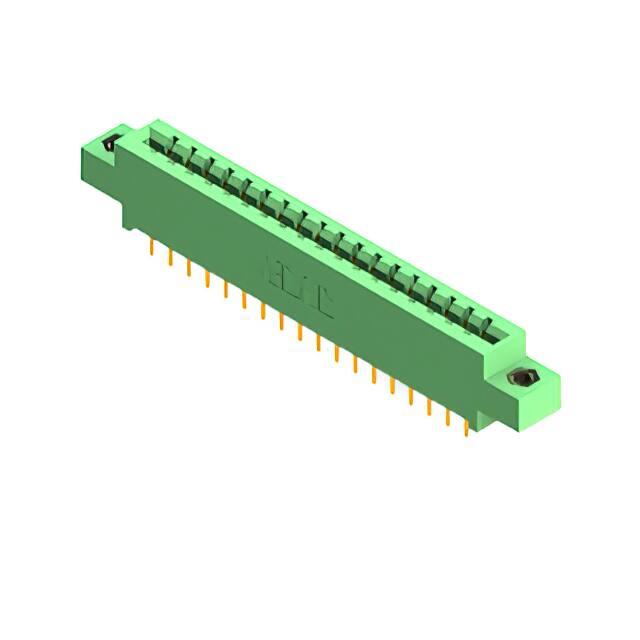

337-036-542-807

337-036-542-807
EDAC Inc.
CONN EDGE DUAL FMALE 36POS 0.156
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Card Type
Non Specified - Dual Edge
Contact Finish Thickness
10.0µin (0.25µm)
Termination
Wire Wrap
Contact Material
Copper Alloy
Mfr
EDAC Inc.
Package
Box
Read Out
Dual
Color
Green
Material - Insulation
Polyester Thermoplastic
Gender
Female
Number of Positions/Bay/Row
18
Number of Positions
36
Number of Rows
2
Pitch
0.156" (3.96mm)
Mounting Type
Through Hole
Operating Temperature
-40°C ~ 105°C
Contact Type
Cantilever
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature
Top Mount Opening, Threaded Insert, M3
Termination Rows
2
Series
337
Product Status
Active
Features
-
Contact Finish
Gold
Base Product Number
337-036
