337-056-559-201
337-056-559-201
Favorite Products
Share:

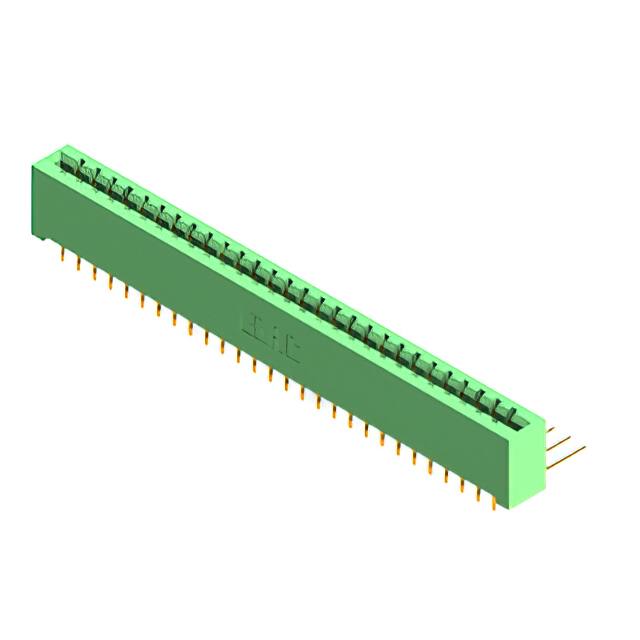

337-056-559-201

337-056-559-201
EDAC Inc.
CONN EDGE DUAL FMALE 56POS 0.156
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Termination
Wire Wrap
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Read Out
Dual
Mfr
EDAC Inc.
Contact Material
Copper Alloy
Contact Type
Cantilever
Termination Rows
2
Number of Positions
56
Features
-
Operating Temperature
-40°C ~ 105°C
Color
Green
Gender
Female
Package
Box
Pitch
0.156" (3.96mm)
Contact Finish
Gold
Material - Insulation
Polyester Thermoplastic
Series
337
Product Status
Active
Number of Rows
2
Card Type
Non Specified - Dual Edge
Number of Positions/Bay/Row
28
Mounting Type
Through Hole, Right Angle
Contact Finish Thickness
10.0µin (0.25µm)
Flange Feature
-
Base Product Number
337-056
