337-070-500-868
337-070-500-868
Favorite Products
Share:

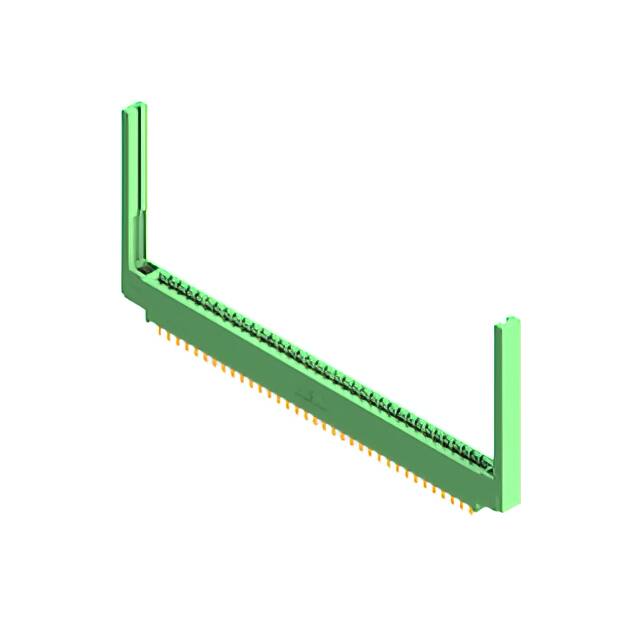

337-070-500-868

337-070-500-868
EDAC Inc.
CONN EDGE DUAL FMALE 70POS 0.156
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Material - Insulation
Polyester Thermoplastic
Color
Green
Number of Rows
2
Package
Box
Gender
Female
Number of Positions/Bay/Row
35
Number of Positions
70
Mounting Type
Through Hole
Card Type
Non Specified - Dual Edge
Termination
Solder Eyelet(s)
Flange Feature
Top Mount Opening, Threaded Insert, 4-40
Contact Finish Thickness
10.0µin (0.25µm)
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Read Out
Dual
Contact Finish
Gold
Contact Type
Cantilever
Termination Rows
2
Series
337
Product Status
Active
Features
Card Guides
Pitch
0.156" (3.96mm)
Contact Material
Copper Alloy
Operating Temperature
-40°C ~ 105°C
Base Product Number
337-070
Mfr
EDAC Inc.
