338-020-541-202
338-020-541-202
Favorite Products
Share:

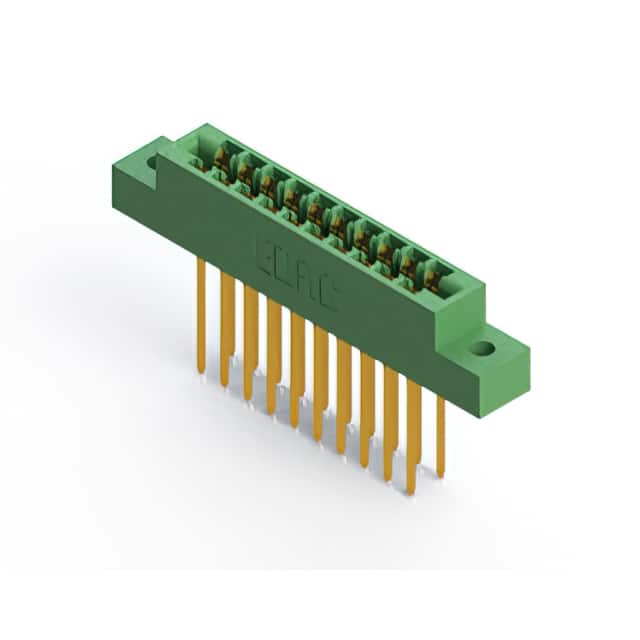

338-020-541-202

338-020-541-202
EDAC Inc.
CONN EDGE DUAL FMALE 20POS 0.156
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Number of Rows
2
Number of Positions
20
Pitch
0.156" (3.96mm)
Read Out
Dual
Contact Material
Copper Alloy
Contact Finish Thickness
10.0µin (0.25µm)
Termination Rows
2
Contact Type
Cantilever
Series
338
Termination
Wire Wrap
Material - Insulation
Diallyl Phthalate (DAP)
Package
Bulk
Number of Positions/Bay/Row
10
Mfr
EDAC Inc.
Card Type
Non Specified - Dual Edge
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Gender
Female
Contact Finish
Gold
Color
Green
Features
-
Operating Temperature
-65°C ~ 125°C
Product Status
Active
Mounting Type
Through Hole
Flange Feature
Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Base Product Number
338-020
