342-056-500-207
342-056-500-207
Favorite Products
Share:

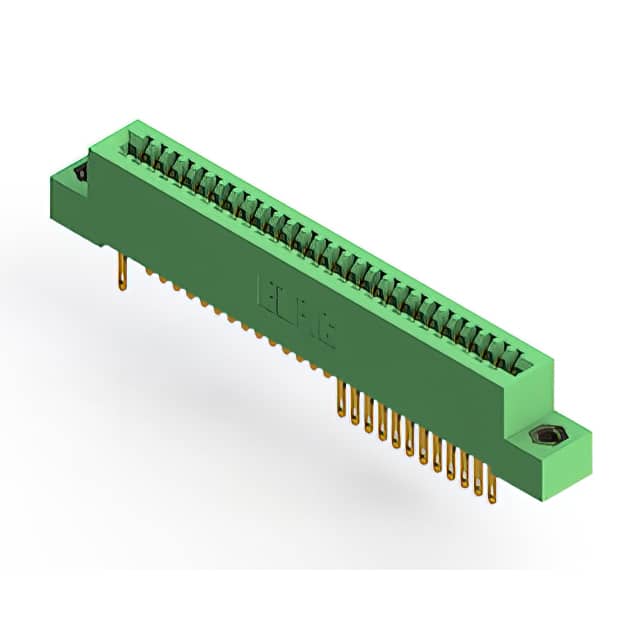

342-056-500-207

342-056-500-207
EDAC Inc.
CONN EDGE DUAL FMALE 56POS 0.100
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Material - Insulation
Polyester Thermoplastic
Gender
Female
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Product Status
Active
Card Type
Non Specified - Dual Edge
Read Out
Dual
Contact Finish
Gold
Color
Green
Operating Temperature
-40°C ~ 105°C
Termination Rows
2
Series
342
Number of Rows
2
Base Product Number
342-056
Pitch
0.100" (2.54mm)
Features
-
Flange Feature
Flush Mount, Top Opening, Threaded Insert, M3
Number of Positions/Bay/Row
28
Contact Material
Copper Alloy
Number of Positions
56
Termination
Solder Eyelet(s)
Contact Finish Thickness
10.0µin (0.25µm)
Contact Type
Cantilever
Mfr
EDAC Inc.
Package
Box
Mounting Type
Through Hole
