3428-5002UG
3428-5002UG
Favorite Products
Share:

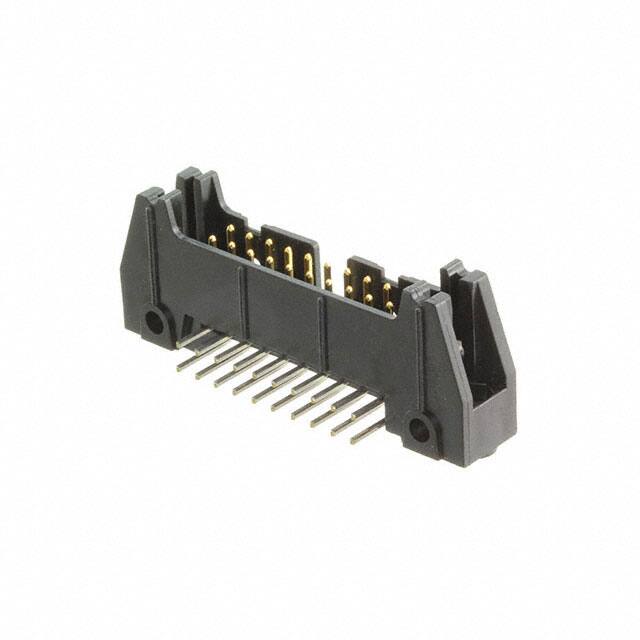

3428-5002UG

3428-5002UG
3M
CONN HEADER R/A 20POS 2.54MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Fastening Type
Push-Pull
Series
3000
Pitch - Mating
0.100" (2.54mm)
Row Spacing - Mating
0.100" (2.54mm)
Number of Positions Loaded
All
Mounting Type
Through Hole, Right Angle
Features
Keying Slot, Mounting Flange
Insulation Color
Black
Applications
-
Style
Board to Board or Cable
Operating Temperature
-55°C ~ 105°C
Mated Stacking Heights
-
Product Status
Obsolete
Number of Rows
2
Contact Shape
Square
Number of Positions
20
Base Product Number
3428
Package
Bulk
Contact Length - Mating
0.240" (6.10mm)
Insulation Height
0.340" (8.64mm)
Contact Finish Thickness - Mating
15.0µin (0.38µm)
Contact Finish - Post
Tin-Lead
Mfr
3M
Voltage Rating
-
Contact Finish Thickness - Post
200.0µin (5.08µm)
Termination
Solder
Contact Length - Post
0.112" (2.84mm)
Contact Finish - Mating
Gold
Insulation Material
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Material Flammability Rating
UL94 V-0
Connector Type
Header
Contact Type
Male Pin
Shrouding
Shrouded - 4 Wall
Overall Contact Length
-
Contact Material
Copper Alloy
Ingress Protection
-
Current Rating (Amps)
1.75A
