345-026-556-507
345-026-556-507
Favorite Products
Share:

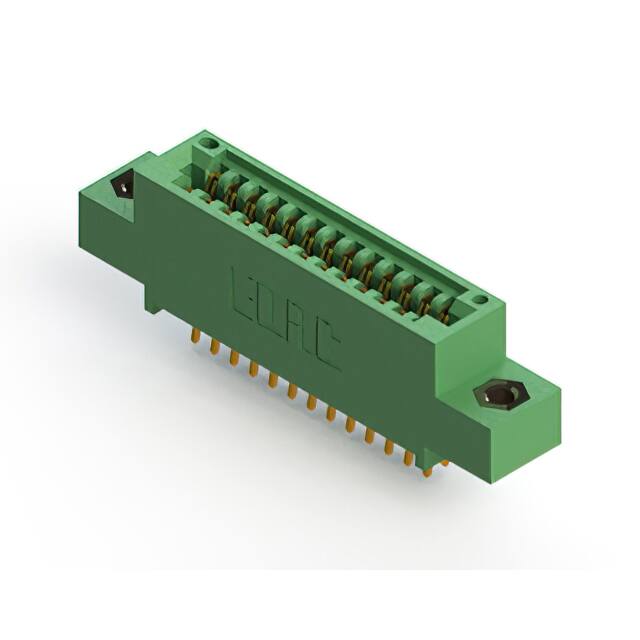

345-026-556-507

345-026-556-507
EDAC Inc.
345 SERIES (.100" (2.54MM) CONTA
Card Edge Connectors - Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Number of Positions/Bay/Row
13
Contact Finish Thickness
10.0µin (0.25µm)
Package
Box
Number of Positions
26
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Contact Material
Copper Alloy
Number of Rows
2
Material - Insulation
Polyester Thermoplastic
Mounting Type
Board Edge, Straddle Mount
Contact Finish
Gold
Operating Temperature
-40°C ~ 105°C
Flange Feature
Top Mount Opening, Threaded Insert, M3
Features
Card Extender
Contact Type
Cantilever
Termination Rows
2
Mfr
EDAC Inc.
Card Type
Non Specified - Dual Edge
Color
Green
Base Product Number
345-026
Read Out
Dual
Termination
Solder
Gender
Female
Series
345
Product Status
Active
Pitch
0.100" (2.54mm)
