345-076-556-802
345-076-556-802
Favorite Products
Share:

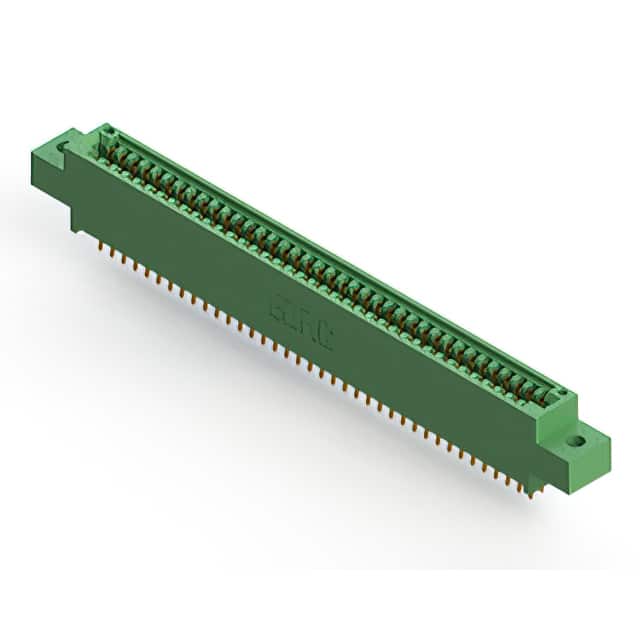

345-076-556-802

345-076-556-802
EDAC Inc.
CONN EDGE DUAL FMALE 76POS 0.100
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Flange Feature
Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination Rows
2
Mfr
EDAC Inc.
Product Status
Active
Card Type
Non Specified - Dual Edge
Mounting Type
Board Edge, Straddle Mount
Termination
Solder
Contact Finish
Gold
Base Product Number
345-076
Number of Positions/Bay/Row
38
Features
Card Extender
Operating Temperature
-40°C ~ 105°C
Package
Box
Number of Positions
76
Contact Material
Copper Alloy
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Pitch
0.100" (2.54mm)
Contact Finish Thickness
10.0µin (0.25µm)
Series
345
Gender
Female
Number of Rows
2
Material - Insulation
Polyester Thermoplastic
Color
Green
Contact Type
Cantilever
Read Out
Dual
