346-024-540-807
346-024-540-807
Favorite Products
Share:

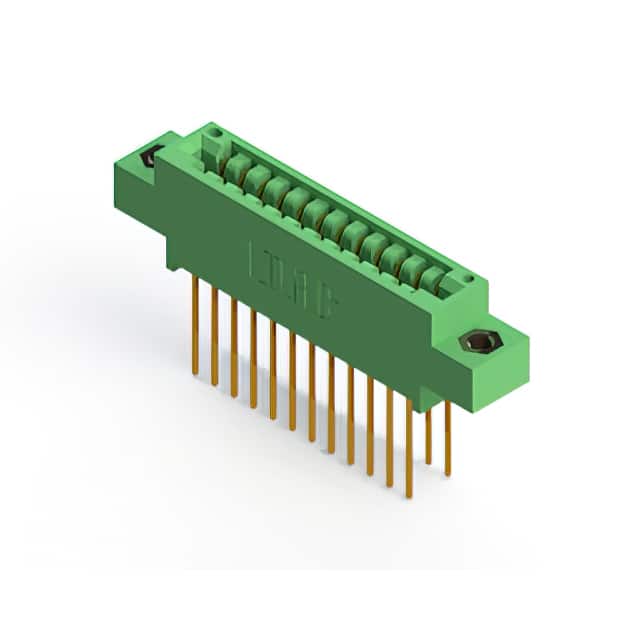

346-024-540-807

346-024-540-807
EDAC Inc.
CONN EDGE DUAL FMALE 24POS 0.125
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Color
Green
Gender
Female
Contact Finish Thickness
10.0µin (0.25µm)
Contact Type
Cantilever
Material - Insulation
Polyester Thermoplastic
Read Out
Dual
Contact Finish
Gold
Operating Temperature
-40°C ~ 105°C
Card Type
Non Specified - Dual Edge
Number of Positions/Bay/Row
12
Number of Positions
24
Features
-
Mounting Type
Through Hole
Contact Material
Copper Alloy
Termination
Wire Wrap
Product Status
Active
Flange Feature
Top Mount Opening, Threaded Insert, M3
Mfr
EDAC Inc.
Package
Box
Termination Rows
2
Pitch
0.125" (3.18mm)
Series
346
Number of Rows
2
Base Product Number
346-024
