346-048-500-807
346-048-500-807
Favorite Products
Share:

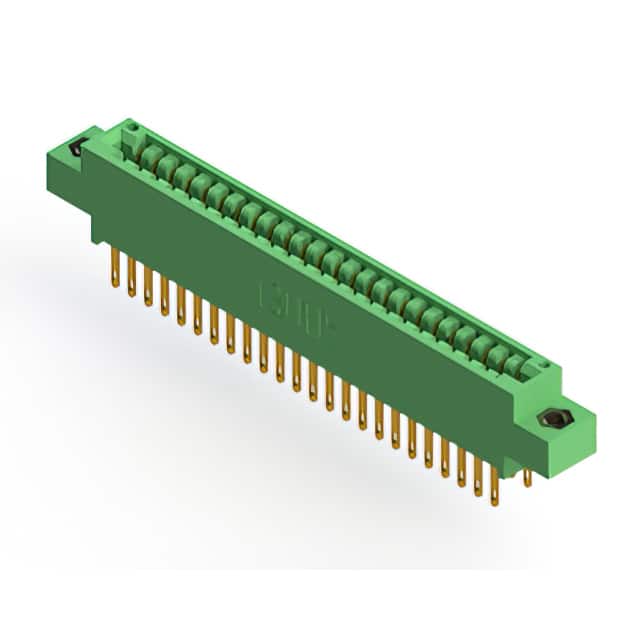

346-048-500-807

346-048-500-807
EDAC Inc.
CONN EDGE DUAL FMALE 48POS 0.125
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Termination
Solder Eyelet(s)
Flange Feature
Top Mount Opening, Threaded Insert, M3
Mfr
EDAC Inc.
Read Out
Dual
Termination Rows
2
Contact Finish Thickness
10.0µin (0.25µm)
Gender
Female
Contact Material
Copper Alloy
Contact Type
Cantilever
Base Product Number
346-048
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Color
Green
Number of Rows
2
Pitch
0.125" (3.18mm)
Features
-
Product Status
Active
Number of Positions
48
Series
346
Package
Box
Contact Finish
Gold
Material - Insulation
Polyester Thermoplastic
Mounting Type
Through Hole
Card Type
Non Specified - Dual Edge
Number of Positions/Bay/Row
24
Operating Temperature
-40°C ~ 105°C
