346-080-526-803
346-080-526-803
Favorite Products
Share:

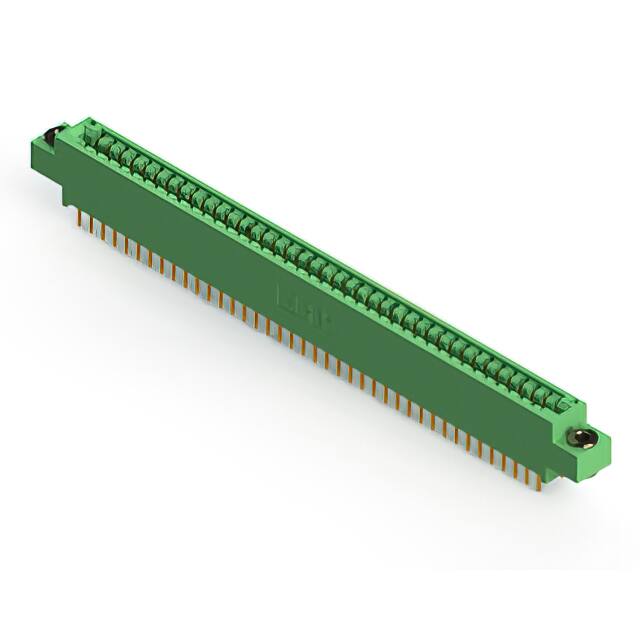

346-080-526-803

346-080-526-803
EDAC Inc.
CONN EDGE DUAL FMALE 80POS 0.125
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Termination Rows
2
Read Out
Dual
Card Type
Non Specified - Dual Edge
Number of Positions
80
Flange Feature
Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia
Mfr
EDAC Inc.
Termination
Solder
Contact Finish
Gold
Color
Green
Pitch
0.125" (3.18mm)
Features
-
Product Status
Active
Gender
Female
Contact Material
Copper Alloy
Mounting Type
Through Hole
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows
2
Contact Finish Thickness
10.0µin (0.25µm)
Material - Insulation
Polyester Thermoplastic
Number of Positions/Bay/Row
40
Package
Box
Contact Type
Cantilever
Operating Temperature
-40°C ~ 105°C
Base Product Number
346-080
Series
346
