346-080-559-802
346-080-559-802
Favorite Products
Share:

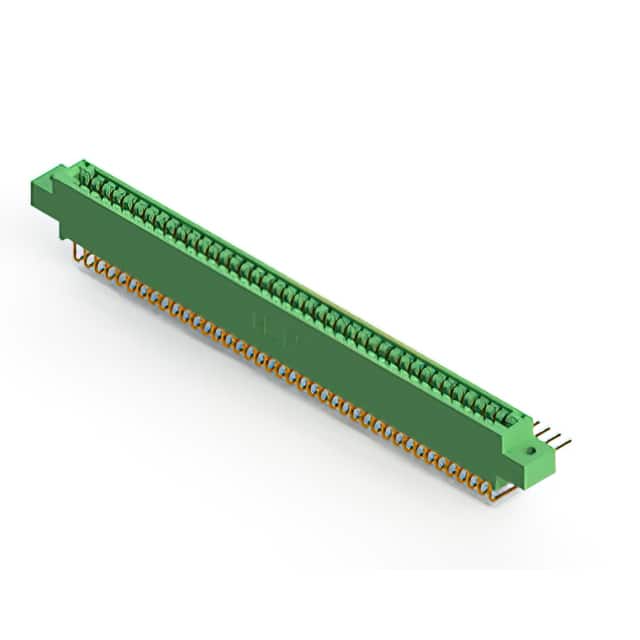

346-080-559-802

346-080-559-802
EDAC Inc.
CONN EDGE DUAL FMALE 80POS 0.125
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Card Type
Non Specified - Dual Edge
Number of Positions
80
Mfr
EDAC Inc.
Pitch
0.125" (3.18mm)
Contact Material
Copper Alloy
Number of Rows
2
Series
346
Number of Positions/Bay/Row
40
Read Out
Dual
Mounting Type
Through Hole, Right Angle
Termination
Solder, Wire Wrap
Operating Temperature
-40°C ~ 105°C
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Contact Finish Thickness
10.0µin (0.25µm)
Features
-
Contact Finish
Gold
Flange Feature
Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Material - Insulation
Polyester Thermoplastic
Package
Box
Product Status
Active
Color
Green
Base Product Number
346-080
Gender
Female
Contact Type
Cantilever
Termination Rows
2
