346-100-500-807
346-100-500-807
Favorite Products
Share:

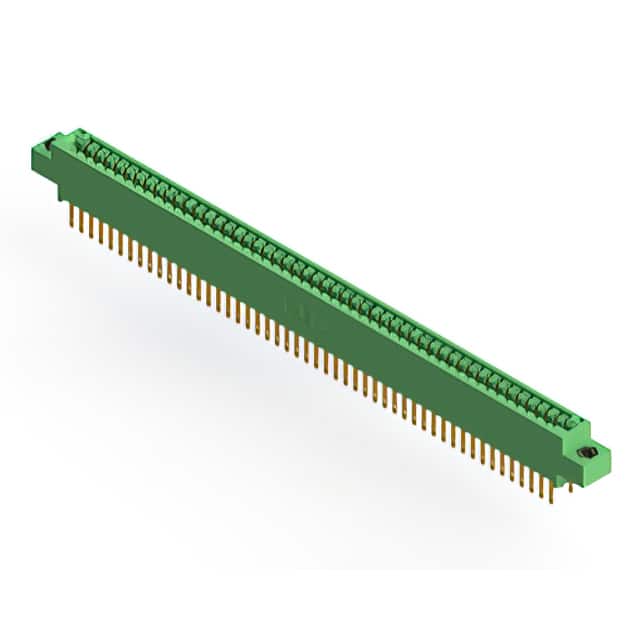

346-100-500-807

346-100-500-807
EDAC Inc.
CONN EDGE DUAL FML 100POS 0.125
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Mfr
EDAC Inc.
Contact Type
Cantilever
Card Type
Non Specified - Dual Edge
Read Out
Dual
Contact Finish
Gold
Gender
Female
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Features
-
Termination
Solder Eyelet(s)
Number of Positions/Bay/Row
50
Material - Insulation
Polyester Thermoplastic
Termination Rows
2
Series
346
Package
Box
Operating Temperature
-40°C ~ 105°C
Product Status
Active
Number of Positions
100
Pitch
0.125" (3.18mm)
Flange Feature
Top Mount Opening, Threaded Insert, M3
Mounting Type
Through Hole
Contact Material
Copper Alloy
Contact Finish Thickness
10.0µin (0.25µm)
Base Product Number
346-100
Number of Rows
2
Color
Green
