38204-52S3-000PL
38204-52S3-000PL
Favorite Products
Share:

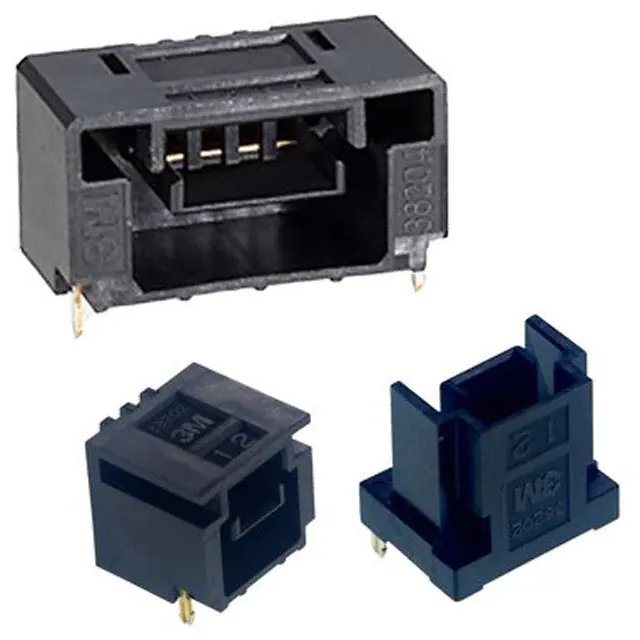

38204-52S3-000PL

38204-52S3-000PL
3M
CONN RCPT 4POS 0.1 GOLD PCB R/A
Rectangular Connectors - Headers, Receptacles, Female Sockets
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Voltage Rating
160V
Operating Temperature
-20°C ~ 70°C
Pitch - Mating
0.100" (2.54mm)
Connector Type
Receptacle
Number of Positions Loaded
All
Contact Length - Post
0.100" (2.54mm)
Base Product Number
38204
Series
382
Package
Bulk
Contact Type
Female Socket
Number of Positions
4
Product Status
Active
Insulation Color
Black
Contact Finish - Post
Gold
Mfr
3M
Style
Board to Cable/Wire
Contact Finish - Mating
Gold
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
Flash
Mated Stacking Heights
-
Ingress Protection
-
Features
Board Lock
Termination
Solder
Contact Finish Thickness - Mating
8.00µin (0.203µm)
Insulation Height
0.512" (13.00mm)
Current Rating (Amps)
5A
Contact Material
Copper Alloy
Row Spacing - Mating
-
Mounting Type
Through Hole, Right Angle
Fastening Type
Latch Holder
Applications
Automotive, General Purpose, Industrial, Lighting
Number of Rows
1
Insulation Material
Polybutylene Terephthalate (PBT)
Contact Shape
Square
