392-070-559-201
392-070-559-201
Favorite Products
Share:

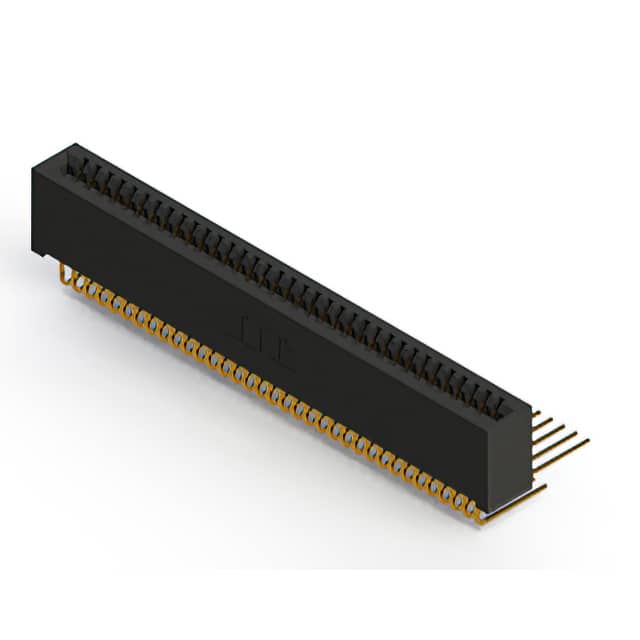

392-070-559-201

392-070-559-201
EDAC Inc.
CONN EDGE DUAL FMALE 70POS 0.100
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Termination
Solder, Wire Wrap
Material - Insulation
Polyester Thermoplastic
Card Type
Non Specified - Dual Edge
Series
392
Mounting Type
Through Hole, Right Angle
Package
Box
Flange Feature
-
Number of Positions/Bay/Row
35
Read Out
Dual
Features
-
Contact Finish Thickness
10.0µin (0.25µm)
Color
Black
Gender
Female
Operating Temperature
-40°C ~ 105°C
Pitch
0.100" (2.54mm)
Product Status
Active
Number of Positions
70
Contact Finish
Gold
Contact Type
Cantilever
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows
2
Contact Material
Copper Alloy
Termination Rows
2
Base Product Number
392-070
Mfr
EDAC Inc.
