395-022-524-504
395-022-524-504
Favorite Products
Share:

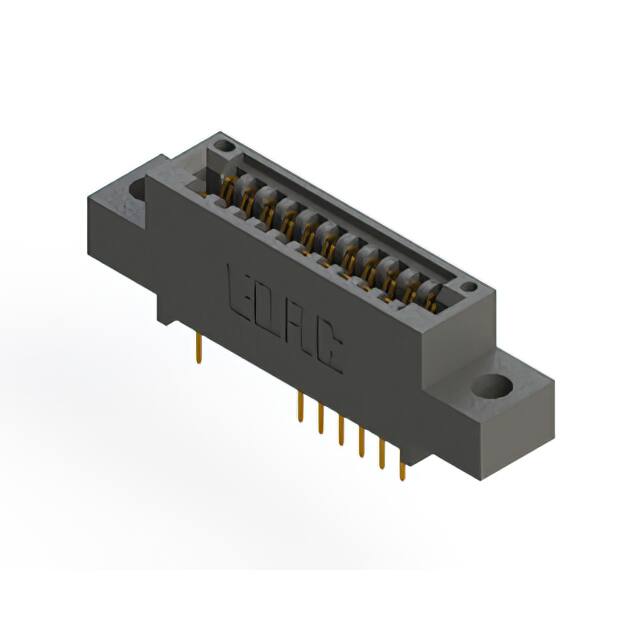

395-022-524-504

395-022-524-504
EDAC Inc.
395 SERIES (.100" (2.54MM) CONTA
Card Edge Connectors - Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Base Product Number
395-022
Number of Positions/Bay/Row
11
Package
Box
Contact Type
Cantilever
Gender
Female
Contact Material
Copper Alloy
Contact Finish Thickness
10.0µin (0.25µm)
Termination Rows
2
Number of Rows
2
Mfr
EDAC Inc.
Number of Positions
22
Read Out
Dual
Termination
Solder
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Mounting Type
Through Hole
Contact Finish
Gold
Color
Black
Product Status
Active
Card Type
Non Specified - Dual Edge
Series
395
Operating Temperature
-40°C ~ 105°C
Pitch
0.100" (2.54mm)
Features
-
Flange Feature
Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Material - Insulation
Polyester Thermoplastic
