396-012-558-604
396-012-558-604
Favorite Products
Share:

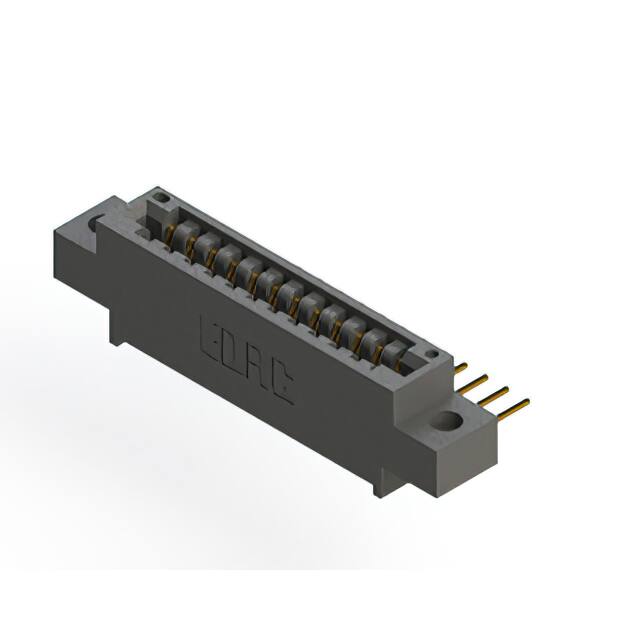

396-012-558-604

396-012-558-604
EDAC Inc.
CONN EDGE SGL FMALE 12POS 0.125
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Operating Temperature
-40°C ~ 105°C
Pitch
0.125" (3.18mm)
Series
396
Number of Positions/Bay/Row
12
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Read Out
Single
Termination
Solder, Wire Wrap
Contact Type
Cantilever
Flange Feature
Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Number of Rows
1
Base Product Number
396-012
Number of Positions
12
Contact Material
Copper Alloy
Contact Finish Thickness
10.0µin (0.25µm)
Color
Black
Features
-
Material - Insulation
Polyester Thermoplastic
Termination Rows
1
Product Status
Active
Gender
Female
Contact Finish
Gold
Mfr
EDAC Inc.
Mounting Type
Through Hole, Right Angle
Card Type
Non Specified - Single Edge
Package
Box
