396-014-540-604
396-014-540-604
Favorite Products
Share:

396-014-540-604

396-014-540-604
EDAC Inc.
CONN EDGE SGL FMALE 14POS 0.125
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Number of Rows
1
Features
-
Package
Box
Gender
Female
Color
Black
Termination Rows
1
Contact Finish
Gold
Pitch
0.125" (3.18mm)
Contact Finish Thickness
10.0µin (0.25µm)
Number of Positions/Bay/Row
14
Number of Positions
14
Termination
Wire Wrap
Contact Material
Copper Alloy
Flange Feature
Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Product Status
Active
Mounting Type
Through Hole
Operating Temperature
-40°C ~ 105°C
Material - Insulation
Polyester Thermoplastic
Mfr
EDAC Inc.
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Contact Type
Cantilever
Card Type
Non Specified - Single Edge
Read Out
Single
Base Product Number
396-014
Series
396
Related Products
EYM24DTMD-S664

Sullins Connector Solutions
807-082-420-204

EDAC Inc.
EMM18DRMH

Sullins Connector Solutions
HCC49HEYS

Sullins Connector Solutions
395-050-541-803

EDAC Inc.
ECC36HEYS

Sullins Connector Solutions

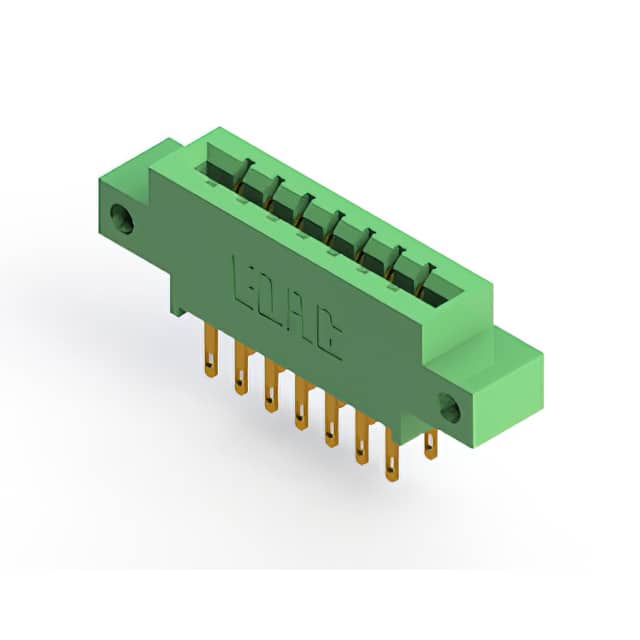

833-014-500-812
