396-018-559-108
396-018-559-108
Favorite Products
Share:

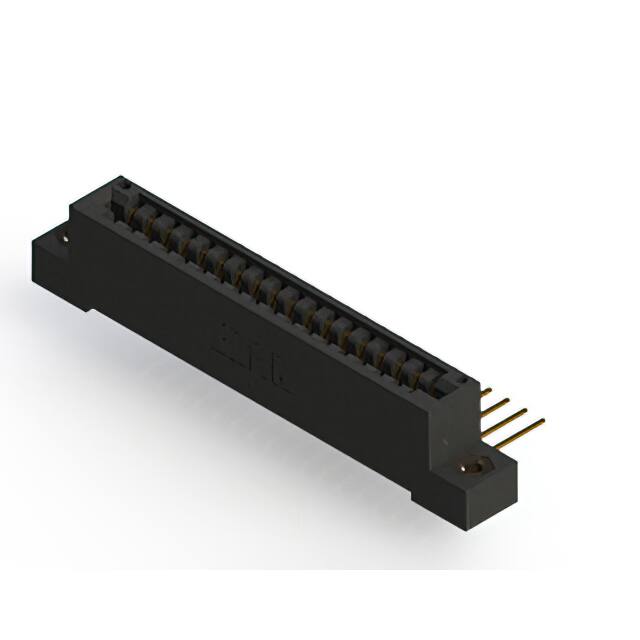

396-018-559-108

396-018-559-108
EDAC Inc.
CONN EDGE SGL FMALE 18POS 0.125
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Finish Thickness
10.0µin (0.25µm)
Termination Rows
1
Flange Feature
Flush Mount, Top Opening, Threaded Insert, 4-40
Number of Rows
1
Contact Material
Copper Alloy
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Pitch
0.125" (3.18mm)
Read Out
Single
Number of Positions/Bay/Row
18
Gender
Female
Contact Finish
Gold
Package
Box
Product Status
Active
Features
-
Color
Black
Material - Insulation
Polyester Thermoplastic
Mounting Type
Through Hole, Right Angle
Number of Positions
18
Termination
Solder, Wire Wrap
Operating Temperature
-40°C ~ 105°C
Series
396
Contact Type
Cantilever
Mfr
EDAC Inc.
Card Type
Non Specified - Single Edge
Base Product Number
396-018
