396-019-541-158
396-019-541-158
Favorite Products
Share:

396-019-541-158

396-019-541-158
EDAC Inc.
CONN EDGE SGL FMALE 19POS 0.125
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Pitch
0.125" (3.18mm)
Number of Positions
19
Number of Rows
1
Mounting Type
Through Hole
Product Status
Active
Features
Card Guides
Series
396
Number of Positions/Bay/Row
19
Operating Temperature
-40°C ~ 105°C
Package
Box
Color
Black
Material - Insulation
Polyester Thermoplastic
Contact Material
Copper Alloy
Contact Finish Thickness
10.0µin (0.25µm)
Read Out
Single
Card Type
Non Specified - Single Edge
Flange Feature
Flush Mount, Top Opening, Threaded Insert, 4-40
Base Product Number
396-019
Termination
Wire Wrap
Contact Finish
Gold
Contact Type
Cantilever
Mfr
EDAC Inc.
Gender
Female
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination Rows
1
Related Products

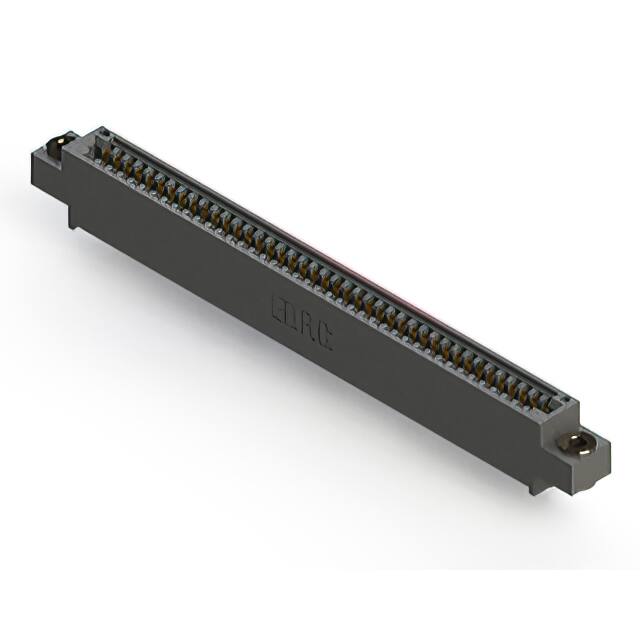

395-041-521-603
