396-044-520-802
396-044-520-802
Favorite Products
Share:

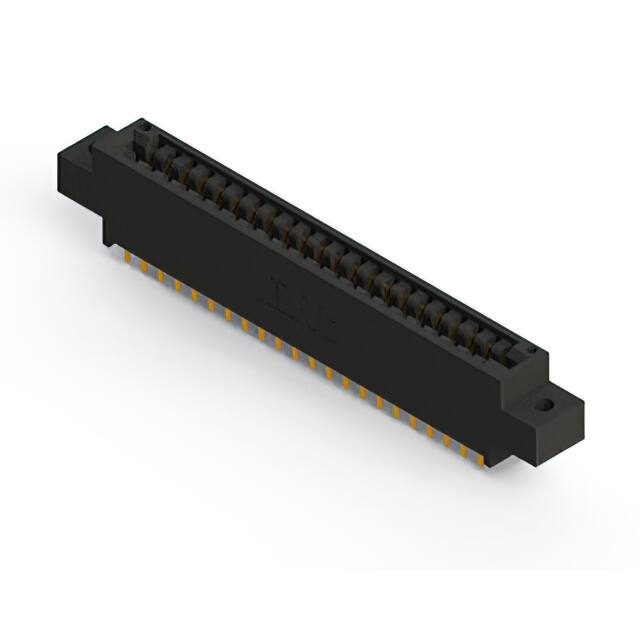

396-044-520-802

396-044-520-802
EDAC Inc.
CONN EDGE DUAL FMALE 44POS 0.125
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Termination Rows
2
Termination
Solder
Contact Material
Copper Alloy
Flange Feature
Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Number of Positions
44
Color
Black
Series
396
Card Type
Non Specified - Dual Edge
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Mounting Type
Through Hole
Package
Bulk
Product Status
Active
Number of Rows
2
Pitch
0.125" (3.18mm)
Features
-
Mfr
EDAC Inc.
Gender
Female
Operating Temperature
-40°C ~ 105°C
Number of Positions/Bay/Row
22
Read Out
Dual
Material - Insulation
Polyester Thermoplastic
Contact Finish
Gold
Contact Finish Thickness
10.0µin (0.25µm)
Contact Type
Cantilever
Base Product Number
396-044
