396-045-526-103
396-045-526-103
Favorite Products
Share:

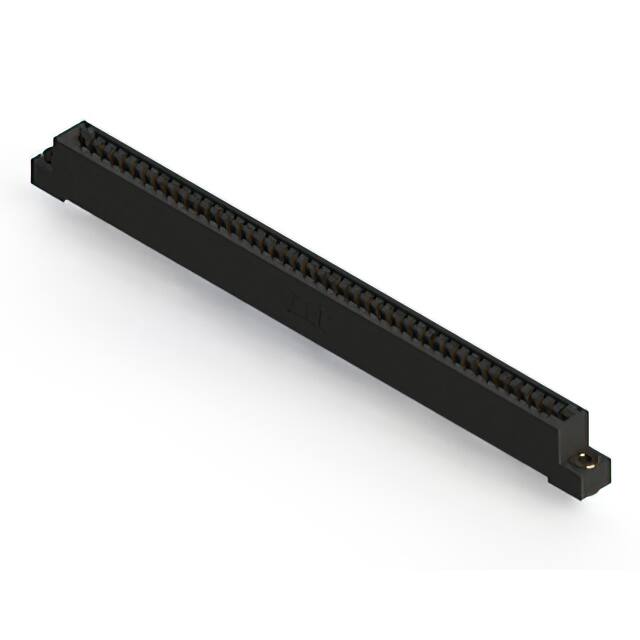

396-045-526-103

396-045-526-103
EDAC Inc.
CONN EDGE SGL FMALE 45POS 0.125
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Number of Positions
45
Base Product Number
396-045
Gender
Female
Read Out
Single
Contact Finish
Gold
Contact Finish Thickness
10.0µin (0.25µm)
Package
Box
Card Type
Non Specified - Single Edge
Number of Positions/Bay/Row
45
Contact Material
Copper Alloy
Material - Insulation
Polyester Thermoplastic
Number of Rows
1
Contact Type
Cantilever
Flange Feature
Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Termination Rows
1
Features
-
Product Status
Active
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Mounting Type
Through Hole
Termination
Solder
Color
Black
Mfr
EDAC Inc.
Pitch
0.125" (3.18mm)
Series
396
Operating Temperature
-40°C ~ 105°C
