396-047-558-103
396-047-558-103
Favorite Products
Share:

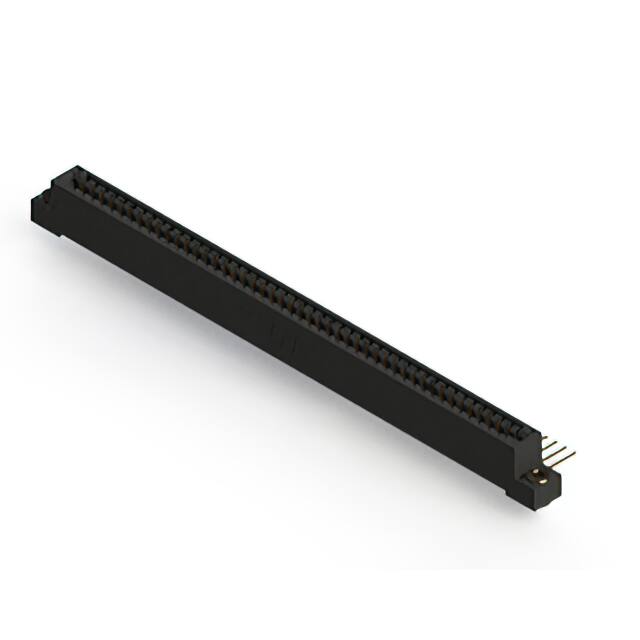

396-047-558-103

396-047-558-103
EDAC Inc.
CONN EDGE SGL FMALE 47POS 0.125
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Termination Rows
1
Contact Finish
Gold
Material - Insulation
Polyester Thermoplastic
Card Type
Non Specified - Single Edge
Number of Positions
47
Mfr
EDAC Inc.
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Positions/Bay/Row
47
Termination
Solder, Wire Wrap
Series
396
Number of Rows
1
Operating Temperature
-40°C ~ 105°C
Pitch
0.125" (3.18mm)
Features
-
Mounting Type
Through Hole, Right Angle
Contact Material
Copper Alloy
Product Status
Active
Read Out
Single
Contact Finish Thickness
10.0µin (0.25µm)
Color
Black
Contact Type
Cantilever
Package
Box
Gender
Female
Flange Feature
Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Base Product Number
396-047
