45206-220230
45206-220230
45206-220230
Favorite Products
Share:

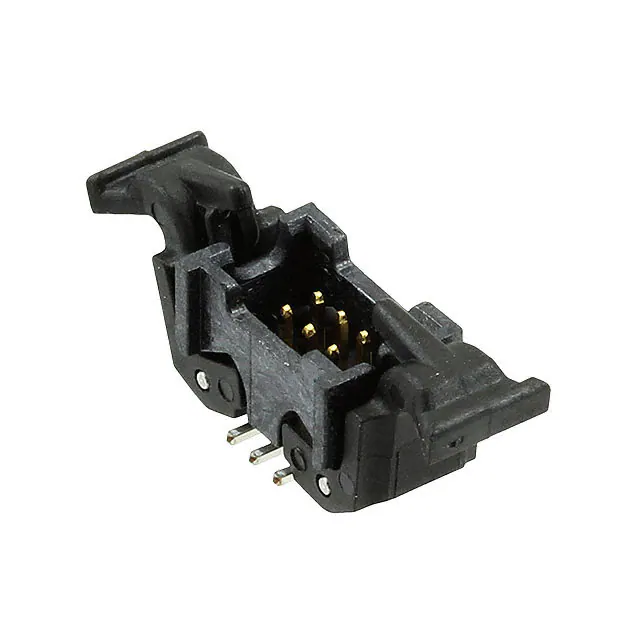

45206-220230

45206-220230
3M
CONN HEADER SMD 6POS 1.27MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Base Product Number
45206
Contact Material
Copper Alloy
Contact Length - Post
-
Current Rating (Amps)
1A
Number of Positions Loaded
All
Pitch - Mating
0.050" (1.27mm)
Mounting Type
Surface Mount
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Features
Keying Slot, Pick and Place
Contact Type
Male Pin
Row Spacing - Mating
0.050" (1.27mm)
Termination
Solder
Fastening Type
Latch Lock/Eject Hooks, Short
Contact Shape
Square
Product Status
Active
Overall Contact Length
-
Contact Finish - Post
Tin
Ingress Protection
-
Mated Stacking Heights
5.84mm, 6.60mm, 7.21mm, 8.13mm
Style
Board to Cable/Wire
Shrouding
Shrouded - 4 Wall
Contact Finish Thickness - Post
200.0µin (5.08µm)
Applications
-
Number of Positions
6
Insulation Material
Liquid Crystal Polymer (LCP)
Material Flammability Rating
UL94 V-0
Connector Type
Header
Number of Rows
2
Voltage Rating
125V
Contact Finish - Mating
Gold
Mfr
3M
Series
452
Package
Tape & Reel (TR)^^Cut Tape (CT)
Contact Length - Mating
-
Insulation Height
0.222" (5.65mm)
Operating Temperature
-65°C ~ 125°C
Insulation Color
-
