45212-220230
45212-220230
Favorite Products
Share:

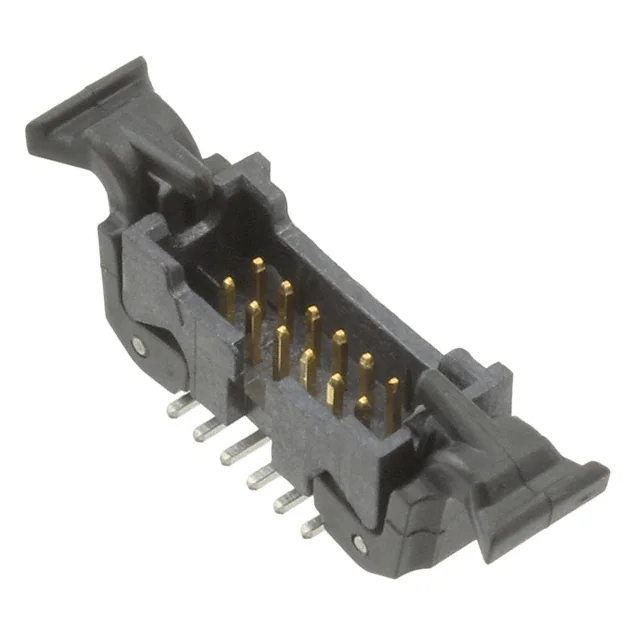

45212-220230

45212-220230
3M
CONN HEADER SMD 12POS 1.27MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Connector Type
Header
Mounting Type
Surface Mount
Ingress Protection
-
Base Product Number
45212
Contact Length - Mating
-
Contact Type
Male Pin
Contact Finish Thickness - Post
200.0µin (5.08µm)
Style
Board to Cable/Wire
Fastening Type
Latch Lock/Eject Hooks, Short
Contact Shape
Square
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Features
Keying Slot, Pick and Place
Voltage Rating
125V
Package
Tape & Reel (TR)^^Cut Tape (CT)
Number of Positions
12
Insulation Height
0.222" (5.65mm)
Insulation Material
Liquid Crystal Polymer (LCP)
Operating Temperature
-65°C ~ 125°C
Mated Stacking Heights
5.84mm, 6.60mm, 7.21mm, 8.13mm
Shrouding
Shrouded - 4 Wall
Material Flammability Rating
UL94 V-0
Number of Positions Loaded
All
Contact Length - Post
-
Overall Contact Length
-
Contact Finish - Mating
Gold
Series
452
Termination
Solder
Current Rating (Amps)
1A
Applications
-
Product Status
Active
Number of Rows
2
Contact Material
Copper Alloy
Mfr
3M
Pitch - Mating
0.050" (1.27mm)
Row Spacing - Mating
0.050" (1.27mm)
Contact Finish - Post
Tin
Insulation Color
-
