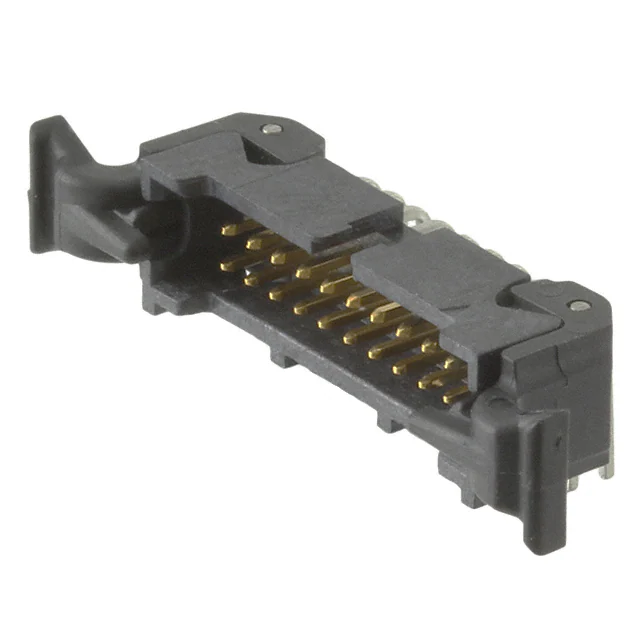

45220-520230

45220-520230
3M
CONN HEADER R/A 20POS 1.27MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Features
Keying Slot
Package
Tray
Fastening Type
Latch Lock/Eject Hooks, Short
Contact Finish Thickness - Post
200.0µin (5.08µm)
Contact Type
Male Pin
Number of Rows
2
Voltage Rating
125V
Mfr
3M
Shrouding
Shrouded - 4 Wall
Contact Finish - Post
Tin
Mated Stacking Heights
-
Product Status
Active
Termination
Solder
Operating Temperature
-65°C ~ 125°C
Pitch - Mating
0.050" (1.27mm)
Number of Positions Loaded
All
Style
Board to Cable/Wire
Current Rating (Amps)
1A
Base Product Number
45220
Number of Positions
20
Contact Length - Mating
-
Contact Shape
Square
Contact Finish - Mating
Gold
Insulation Material
Liquid Crystal Polymer (LCP)
Series
452
Mounting Type
Through Hole, Right Angle
Ingress Protection
-
Material Flammability Rating
UL94 V-0
Overall Contact Length
-
Contact Material
Copper Alloy
Applications
-
Connector Type
Header
Row Spacing - Mating
0.050" (1.27mm)
Contact Length - Post
0.094" (2.40mm)
Insulation Height
0.210" (5.33mm)
Insulation Color
-
