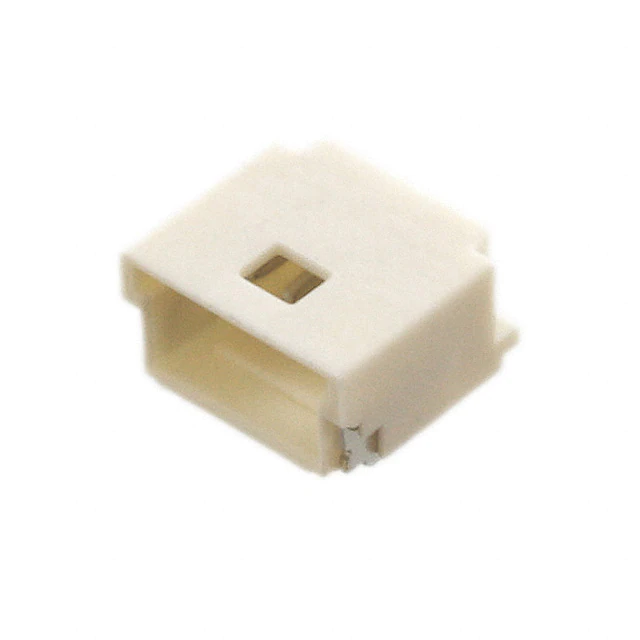

5015680407

5015680407
Molex
CONN HEADER SMD R/A 4POS 1MM
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Row Spacing - Mating
-
Material Flammability Rating
UL94 V-0
Mated Stacking Heights
-
Connector Type
Header
Pitch - Mating
0.039" (1.00mm)
Number of Positions
4
Number of Positions Loaded
All
Contact Finish Thickness - Mating
40.0µin (1.02µm)
Insulation Color
Natural
Package
Tape & Reel (TR)^^Cut Tape (CT)
Termination
Solder
Mfr
Molex
Series
Pico-Clasp 501568
Operating Temperature
-
Base Product Number
501568
Style
Board to Cable/Wire
Contact Length - Mating
-
Insulation Height
0.126" (3.20mm)
Contact Material
Phosphor Bronze
Ingress Protection
-
Contact Type
Male Pin
Fastening Type
Latch Holder
Voltage Rating
-
Product Status
Active
Number of Rows
1
Insulation Material
Polyamide (PA), Nylon
Applications
General Purpose
Mounting Type
Surface Mount, Right Angle
Contact Shape
Square
Contact Finish - Mating
Tin
Contact Finish - Post
Tin
Current Rating (Amps)
-
Shrouding
Shrouded - 4 Wall
Contact Length - Post
-
Overall Contact Length
-
Features
Solder Retention
Contact Finish Thickness - Post
-
