5054332421
5054332421
Favorite Products
Share:

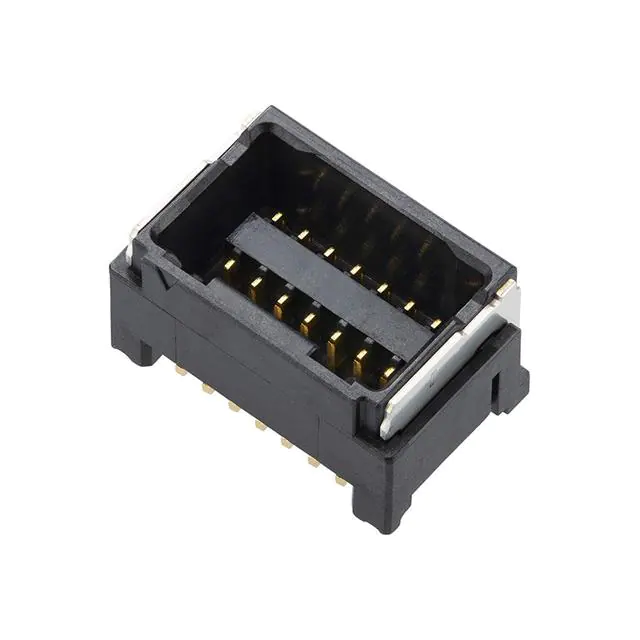

5054332421

5054332421
Molex
1.25WB DL ST ASSY 24CKT BK G038
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Contact Finish - Mating
Gold
Style
Board to Cable/Wire
Applications
Automotive, General Purpose, Industrial
Connector Type
Header
Overall Contact Length
-
Contact Length - Post
-
Base Product Number
505433
Series
Micro-Lock PLUS 505433
Contact Type
Male Pin
Termination
Solder
Fastening Type
Latch Holder
Contact Length - Mating
-
Contact Finish - Post
Gold
Pitch - Mating
0.049" (1.25mm)
Contact Shape
Square
Insulation Material
Polyamide (PA), Nylon
Features
Solder Retention
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
15.0µin (0.38µm)
Product Status
Active
Ingress Protection
-
Package
Tape & Reel (TR)^^Cut Tape (CT)
Number of Positions
24
Operating Temperature
-40°C ~ 105°C
Current Rating (Amps)
Varies by Wire Gauge
Insulation Height
0.285" (7.25mm)
Voltage Rating
50VAC/DC
Mfr
Molex
Shrouding
Shrouded - 4 Wall
Contact Material
Brass
Number of Rows
2
Row Spacing - Mating
-
Number of Positions Loaded
All
Mounting Type
Surface Mount
Contact Finish Thickness - Mating
15.0µin (0.38µm)
Insulation Color
Black
Mated Stacking Heights
-
