5054483691
5054483691
Favorite Products
Share:

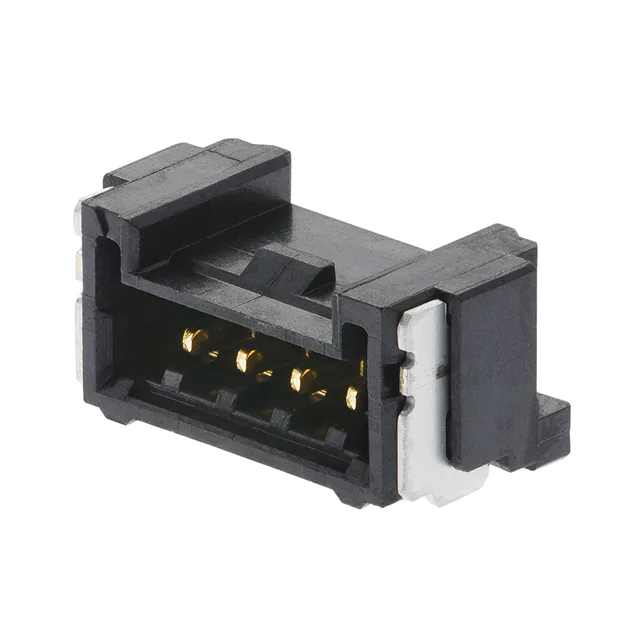

5054483691

5054483691
Molex
1.25WB DL RA ASSY 36CKT BK G010
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Operating Temperature
-40°C ~ 105°C
Product Status
Active
Contact Type
Male Pin
Number of Positions
36
Overall Contact Length
-
Features
Pick and Place, Solder Retention
Contact Finish Thickness - Post
3.94µin (0.100µm)
Number of Rows
2
Number of Positions Loaded
All
Contact Length - Post
-
Insulation Height
0.352" (8.95mm)
Mfr
Molex
Contact Length - Mating
-
Current Rating (Amps)
Varies by Wire Gauge
Contact Finish - Mating
Gold
Contact Material
Brass
Insulation Material
Polyamide (PA), Nylon
Series
Micro-Lock PLUS 505448
Connector Type
Header
Mounting Type
Surface Mount, Right Angle
Termination
Solder
Fastening Type
Latch Holder
Contact Finish - Post
Gold
Material Flammability Rating
UL94 V-0
Voltage Rating
50VAC/DC
Pitch - Mating
0.049" (1.25mm)
Contact Finish Thickness - Mating
3.94µin (0.100µm)
Applications
General Purpose, Industrial, Lighting
Shrouding
Shrouded - 4 Wall
Insulation Color
Black
Base Product Number
505448
Row Spacing - Mating
-
Contact Shape
Square
Ingress Protection
-
Mated Stacking Heights
-
Package
Tape & Reel (TR)^^Cut Tape (CT)
Style
Board to Cable/Wire
