5055670331
5055670331
Favorite Products
Share:

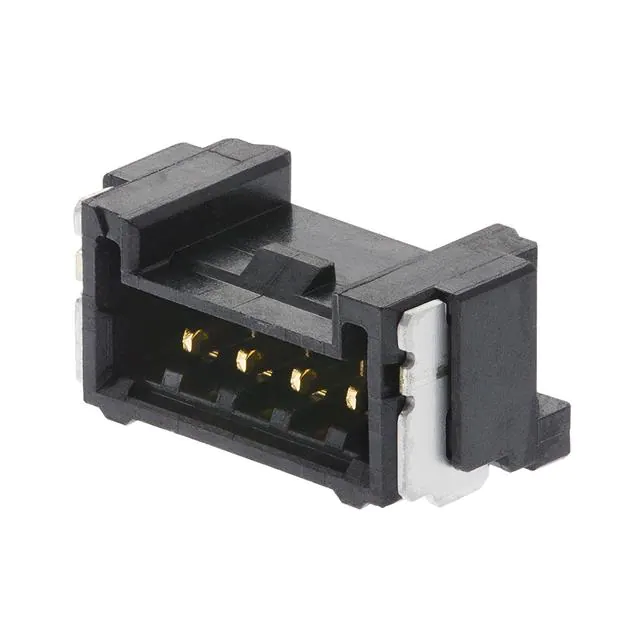

5055670331

5055670331
Molex
1.25WB SGL RA ASSY 3CKT EMBPKG B
Rectangular Connectors - Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Voltage Rating
50VAC/DC
Overall Contact Length
-
Operating Temperature
-40°C ~ 105°C
Connector Type
Header
Number of Rows
1
Contact Finish - Post
Gold
Insulation Material
Polyamide (PA), Nylon, Glass Filled
Product Status
Active
Mated Stacking Heights
-
Contact Finish Thickness - Post
15.0µin (0.38µm)
Mfr
Molex
Contact Type
Male Pin
Number of Positions
3
Contact Shape
Square
Ingress Protection
-
Number of Positions Loaded
All
Mounting Type
Surface Mount, Right Angle
Termination
Solder
Contact Length - Mating
-
Applications
Automotive, General Purpose, Industrial
Base Product Number
505567
Series
Micro-Lock PLUS 505567
Insulation Color
Black
Shrouding
Shrouded - 4 Wall
Contact Length - Post
-
Insulation Height
0.154" (3.90mm)
Contact Finish - Mating
Gold
Features
Solder Retention
Package
Tape & Reel (TR)^^Cut Tape (CT)
Style
Board to Cable/Wire
Contact Finish Thickness - Mating
15.0µin (0.38µm)
Contact Material
Brass
Material Flammability Rating
UL94 V-0
Row Spacing - Mating
-
Fastening Type
Locking Ramp
Current Rating (Amps)
Varies by Wire Gauge
Pitch - Mating
0.049" (1.25mm)
