505568-0972
505568-0972
Favorite Products
Share:

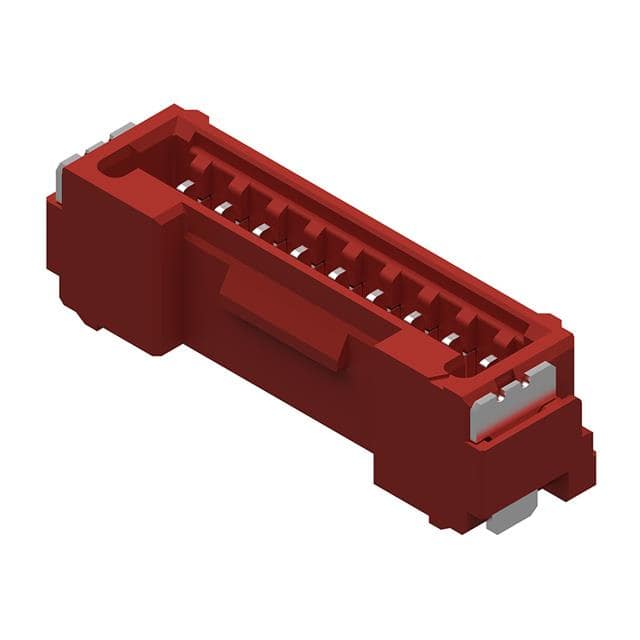

505568-0972

505568-0972
Molex
1.25WB SINGLE ST ASSY 9CKT EMBPK
Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Shrouding
Shrouded - 4 Wall
Mated Stacking Heights
7.4mm
Number of Positions
9
Features
Pick and Place, Solder Retention
Operating Temperature
-40°C ~ 105°C
Contact Finish Thickness - Post
39.4µin (1.00µm)
Pitch - Mating
0.049" (1.25mm)
Row Spacing - Mating
-
Contact Finish - Post
Tin
Contact Type
Male Pin
Style
Board to Cable/Wire
Number of Rows
1
Contact Length - Post
-
Overall Contact Length
-
Contact Finish - Mating
Tin
Termination
Solder
Base Product Number
505568
Package
Box
Contact Shape
Square
Contact Finish Thickness - Mating
39.4µin (1.00µm)
Insulation Material
Polyamide (PA), Nylon, Glass Filled
Series
Micro-Lock PLUS 505568
Number of Positions Loaded
All
Contact Length - Mating
-
Insulation Height
0.165" (4.20mm)
Ingress Protection
-
Insulation Color
Red
Mfr
Molex
Product Status
Active
Connector Type
Header
Fastening Type
Push-Pull
Current Rating (Amps)
Varies by Wire Gauge
Voltage Rating
50VAC/DC
Applications
Automotive, General Purpose, Industrial
Mounting Type
Surface Mount
Contact Material
Brass
Material Flammability Rating
UL94 V-0
