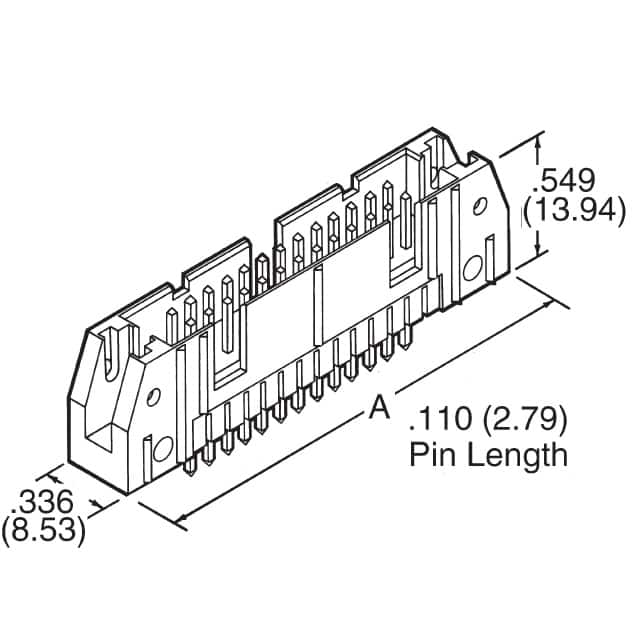

5102156-4

5102156-4
TE Connectivity AMP Connectors
CONN HEADER VERT 20POS 2.54MM
Headers, Male Pins
Available
RoHS Compliant
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Number of Positions
20
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Shrouding
Shrouded - 4 Wall
Material Flammability Rating
UL94 V-0
Number of Rows
2
Contact Material
-
Insulation Color
Black
Voltage Rating
250VAC
Mfr
TE Connectivity AMP Connectors
Package
Bulk
Product Status
Active
Connector Type
Header
Contact Type
Male Pin
Contact Shape
Square
Ingress Protection
-
Number of Positions Loaded
All
Style
Board to Cable/Wire
Contact Finish - Post
Tin
Insulation Height
0.549" (13.94mm)
Insulation Material
-
Current Rating (Amps)
1A per Contact
Applications
-
Series
AMP-Latch
Termination
Solder
Pitch - Mating
0.100" (2.54mm)
Contact Length - Post
0.155" (3.94mm)
Contact Finish - Mating
Gold or Gold-Palladium
Row Spacing - Mating
0.100" (2.54mm)
Mounting Type
Through Hole
Features
Keying Slot, Mounting Flange
Operating Temperature
-65°C ~ 105°C
Fastening Type
Push-Pull
Contact Length - Mating
0.240" (6.10mm)
Overall Contact Length
0.684" (17.37mm)
Mated Stacking Heights
-
Contact Finish Thickness - Post
100.0µin (2.54µm)
Base Product Number
5102156
