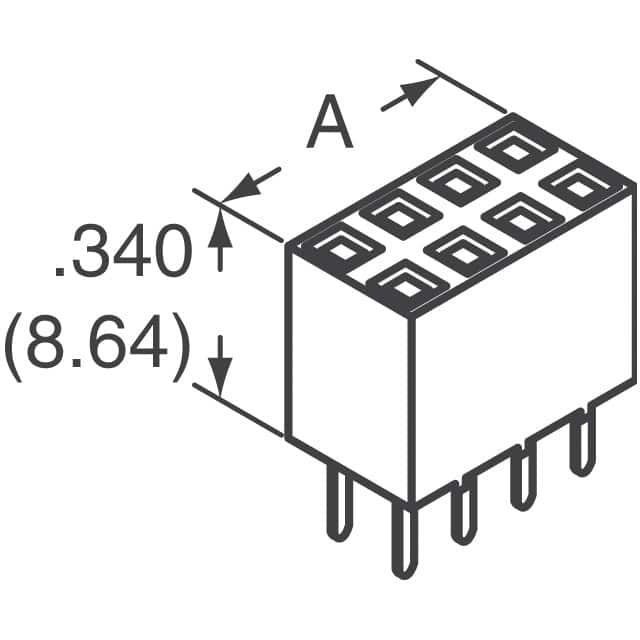

6-534206-3
6-534206-3
6-534206-3
6-534206-3
Favorite Products
Share:

6-534206-3

6-534206-3
TE Connectivity AMP Connectors
CONN RCPT 26POS 0.1 GOLD PCB
Headers, Receptacles, Female Sockets
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Package
Tube
Ingress Protection
-
Voltage Rating
-
Insulation Height
0.320" (8.13mm)
Contact Finish - Mating
Gold
Connector Type
Receptacle
Style
Board to Board or Cable
Number of Rows
2
Material Flammability Rating
UL94 V-0
Contact Finish - Post
Tin
Current Rating (Amps)
2A
Insulation Material
Polyester, Glass Filled
Contact Type
Female Socket
Pitch - Mating
0.100" (2.54mm)
Contact Length - Post
0.115" (2.92mm)
Mated Stacking Heights
-
Applications
-
Mfr
TE Connectivity AMP Connectors
Product Status
Active
Contact Finish Thickness - Mating
30.0µin (0.76µm)
Number of Positions Loaded
All
Series
AMPMODU Mod II
Row Spacing - Mating
0.100" (2.54mm)
Termination
Solder
Base Product Number
534206
Number of Positions
26
Insulation Color
Black
Contact Finish Thickness - Post
150.0µin (3.81µm)
Fastening Type
Push-Pull
Features
-
Contact Shape
Square
Contact Material
Phosphor Bronze
Mounting Type
Through Hole
Operating Temperature
-65°C ~ 125°C
