663-015-264-045
663-015-264-045
Favorite Products
Share:

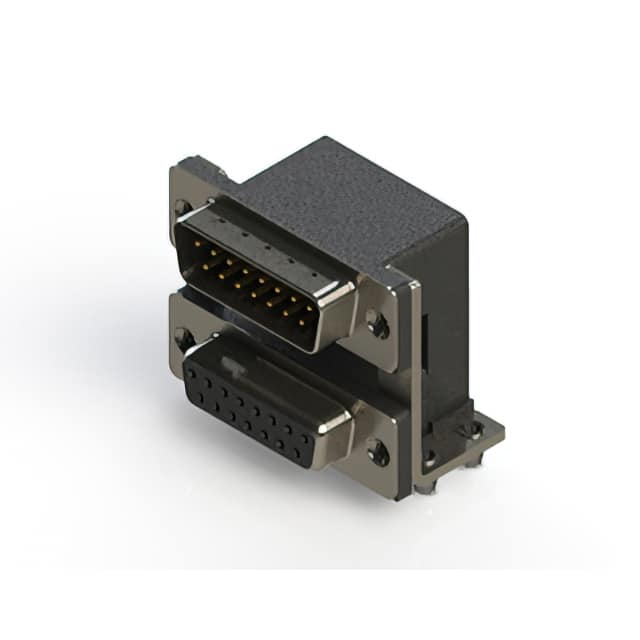

663-015-264-045

663-015-264-045
EDAC Inc.
663 SERIES RIGHT ANGLE DUAL D-SU
D-Sub Connector Assemblies
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Number of Positions
15, 15
Number of Rows
2, 2
Voltage Rating
-
Dielectric Material
Polyester Thermoplastic
Wire Gauge
-
Base Product Number
663-015
Connector Style
D-Sub - Stacked
Flange Feature
Housing/Shell (4-40)
Current Rating (Amps)
3A per Contact
Shell Size, Connector Layout
2 (DA, A); 2 (DA, A)
Contact Finish Thickness
Flash
Backset Spacing
0.318" (8.08mm)
Contact Type
Signal
Contact Material
Brass, Phosphor Bronze
Series
663
Material Flammability Rating
UL94 V-0
Mfr
EDAC Inc.
Contact Form
-
Package
Tray
Connector Type
Plug, Male Pins; Receptacle, Female Sockets
Termination
Solder
Shell Material, Finish
Steel, Nickel Plated
Features
Board Lock, Grounding Indents, Mounting Brackets, Shielded
Product Status
Active
Mounting Type
Through Hole, Right Angle
Color
Black
Operating Temperature
-55°C ~ 85°C
Contact Finish
Gold
Ingress Protection
-
