663-025-664-042
663-025-664-042
Favorite Products
Share:

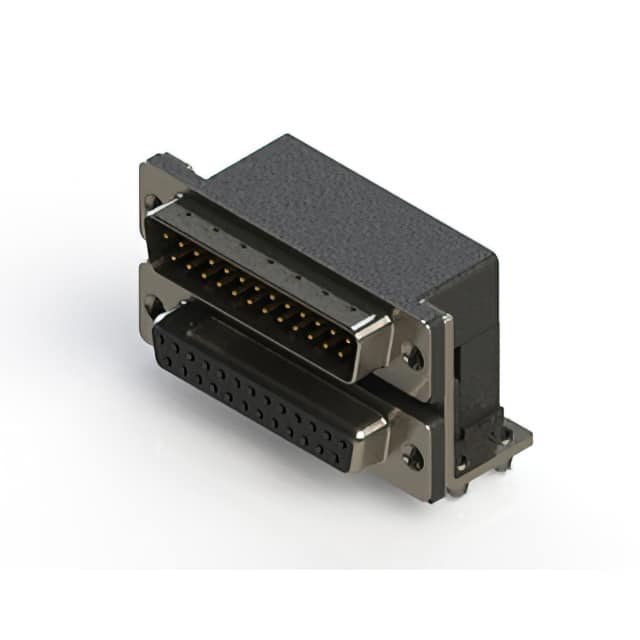

663-025-664-042

663-025-664-042
EDAC Inc.
663 SERIES RIGHT ANGLE DUAL D-SU
D-Sub Connector Assemblies
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Voltage Rating
-
Mfr
EDAC Inc.
Product Status
Active
Termination
Solder
Number of Rows
2, 2
Mounting Type
Through Hole, Right Angle
Connector Style
D-Sub - Stacked
Number of Positions
25, 25
Wire Gauge
-
Connector Type
Plug, Male Pins; Receptacle, Female Sockets
Current Rating (Amps)
3A per Contact
Backset Spacing
0.318" (8.08mm)
Shell Material, Finish
Steel, Nickel Plated
Material Flammability Rating
UL94 V-0
Contact Form
-
Base Product Number
663-025
Series
663
Package
Tray
Contact Finish
Gold
Ingress Protection
-
Features
Board Lock, Grounding Indents, Mounting Brackets, Shielded
Operating Temperature
-55°C ~ 85°C
Contact Type
Signal
Contact Finish Thickness
30.0µin (0.76µm)
Color
Black
Dielectric Material
Polyester Thermoplastic
Shell Size, Connector Layout
3 (DB, B); 3 (DB, B)
Flange Feature
Housing/Shell (4-40)
Contact Material
Brass, Phosphor Bronze
