746-056-545-201
746-056-545-201
Favorite Products
Share:

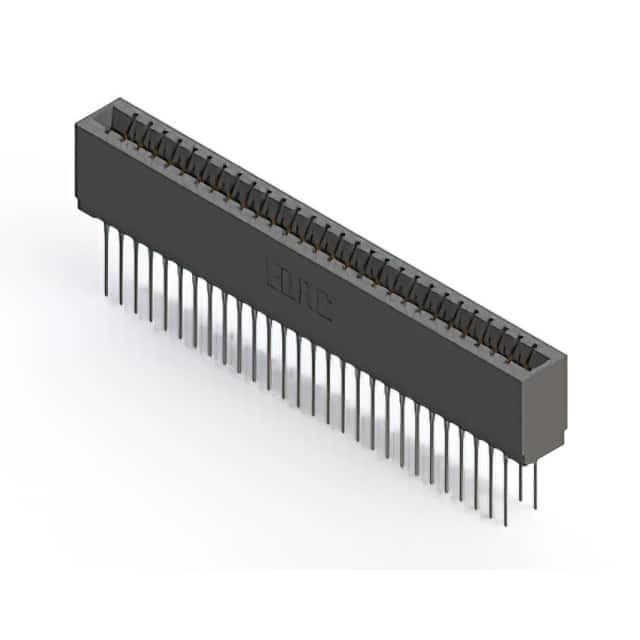

746-056-545-201

746-056-545-201
EDAC Inc.
CONN EDGE DUAL FMALE 56POS 0.125
Edgeboard Connectors
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Number of Rows
2
Base Product Number
746-056
Contact Material
Copper Alloy
Features
-
Mfr
EDAC Inc.
Operating Temperature
-40°C ~ 105°C
Contact Type
Cantilever
Package
Box
Color
Black
Number of Positions/Bay/Row
28
Pitch
0.125" (3.18mm)
Termination Rows
2
Gender
Female
Number of Positions
56
Card Thickness
0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Read Out
Dual
Contact Finish
Gold
Material - Insulation
Polyester Thermoplastic
Card Type
Non Specified - Dual Edge
Contact Finish Thickness
30.0µin (0.76µm)
Product Status
Active
Series
746
Mounting Type
Through Hole
Termination
Press-Fit, Wire Wrap
Flange Feature
-
