77313-802-12LF
77313-802-12LF
77313-802-12LF
Favorite Products
Share:

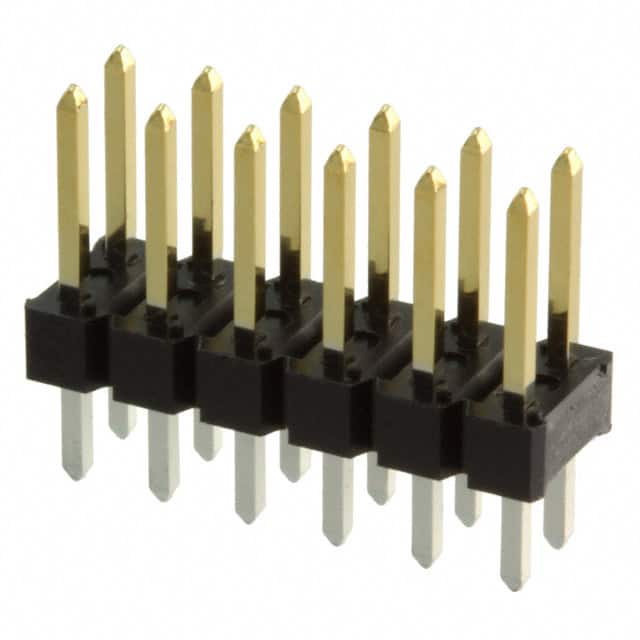

77313-802-12LF

77313-802-12LF
Amphenol ICC (FCI)
CONN HEADER VERT 12POS 2.54MM
Headers, Male Pins
Available
RoHS Compliant
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Insulation Color
Black
Mounting Type
Through Hole
Contact Length - Mating
0.230" (5.84mm)
Insulation Height
0.100" (2.54mm)
Connector Type
Header, Breakaway
Number of Positions Loaded
All
Fastening Type
Push-Pull
Contact Material
Phosphor Bronze
Operating Temperature
-65°C ~ 130°C
Voltage Rating
-
Contact Finish Thickness - Post
78.7µin (2.00µm)
Number of Rows
2
Contact Length - Post
0.135" (3.43mm)
Applications
-
Series
BERGSTIK®
Contact Type
Male Pin
Number of Positions
12
Row Spacing - Mating
0.100" (2.54mm)
Termination
Solder
Insulation Material
Thermoplastic
Material Flammability Rating
UL94 V-0
Mfr
Amphenol ICC (FCI)
Product Status
Active
Pitch - Mating
0.100" (2.54mm)
Shrouding
Unshrouded
Contact Finish Thickness - Mating
15.0µin (0.38µm)
Contact Finish - Post
Tin
Features
-
Base Product Number
77313
Overall Contact Length
0.465" (11.81mm)
Contact Finish - Mating
Gold or Gold, GXT™
Contact Shape
Square
Package
Bag
Style
Board to Board or Cable
Current Rating (Amps)
3A per Contact
Mated Stacking Heights
-
Ingress Protection
-
