796642-7
796642-7
Favorite Products
Share:

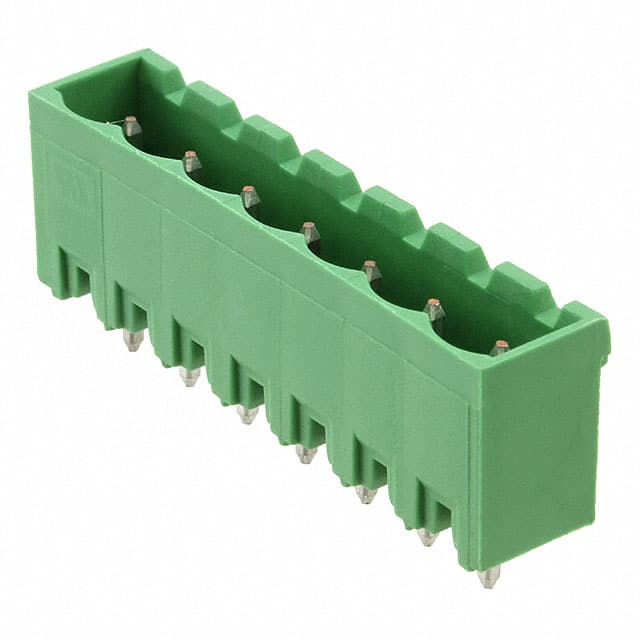

796642-7

796642-7
TE Connectivity AMP Connectors
TERM BLOCK HDR 7POS VERT 5MM
Headers, Plugs and Sockets
Available
RoHS Compliant
Datasheet
Datasheet
Available In Stock
Please send RFQ, we will respond immediately
Just Fill in the content with an*
Contact Information
(You can also Log In and fill in automatically)
*
*
*
*
*
Product Attributes
Type PARAMETERS
Operating Temperature
-40°C ~ 110°C
Series
Buchanan
Type
Header, Male Pins, Shrouded (4 Side)
Current - IEC
-
Wire Gauge or Range - AWG
-
Current - UL
15 A
Color
Green
Torque - Screw
-
Mfr
TE Connectivity AMP Connectors
Number of Positions
7
Plug Wire Entry
-
Voltage - UL
300 V
Ingress Protection
-
Product Status
Active
Pitch
0.197" (5.00mm)
Screw Size
-
Package
Bulk
Mounting Type
Through Hole
Wire Gauge or Range - mm²
-
Contact Material
Copper Alloy
Base Product Number
796642
Number of Levels
1
Header Orientation
Vertical
Contact Mating Finish
Tin
Wire Strip Length
-
Housing Material
Polyamide (PA66), Nylon 6/6
Contact Tail Length
0.138" (3.50mm)
Insulation Height
0.472" (12.00mm)
Termination Style
Solder
Features
-
Material Flammability Rating
UL94 V-0
Positions Per Level
7
